Installation and Maintenance of Dry-Type Air Core Series Reactors

Power systems may experience harmonic distortion, voltage fluctuations, and hazardous inrush currents during capacitor switching. This may harm factory and utility equipment and create costly downtime. The Dry-Type Air Core Series Reactor eliminates oil leakage, offers linear inductance without magnetic saturation, and requires less maintenance. Dry-Type Air Core Series Reactors employ epoxy-encased aluminum or copper windings instead of iron-core or oil-immersed ones and can withstand extreme circumstances. These devices will last decades if properly installed and maintained. They safeguard critical gear, stabilize the electrical grid, and decrease factory, data center, substation, and commercial building ownership costs.

​​​​​​​

Understanding Dry-Type Air Core Series Reactors: Design and Operational Principles

Parts of today's electrical infrastructure need to be able to deal with complicated power quality problems without lowering safety or efficiency. In situations where magnetic linearity, environmental safety, and long-term operation are important, Dry-Type Air Core Series Reactors have become the best choice.

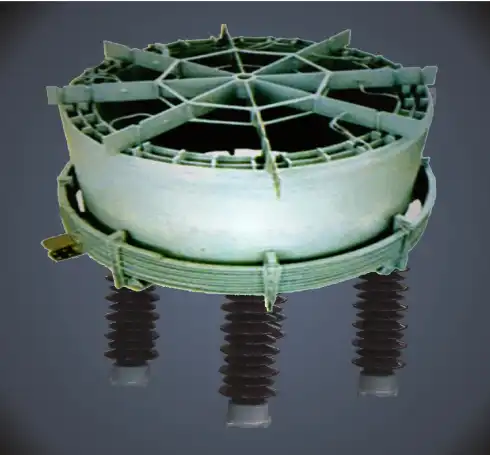

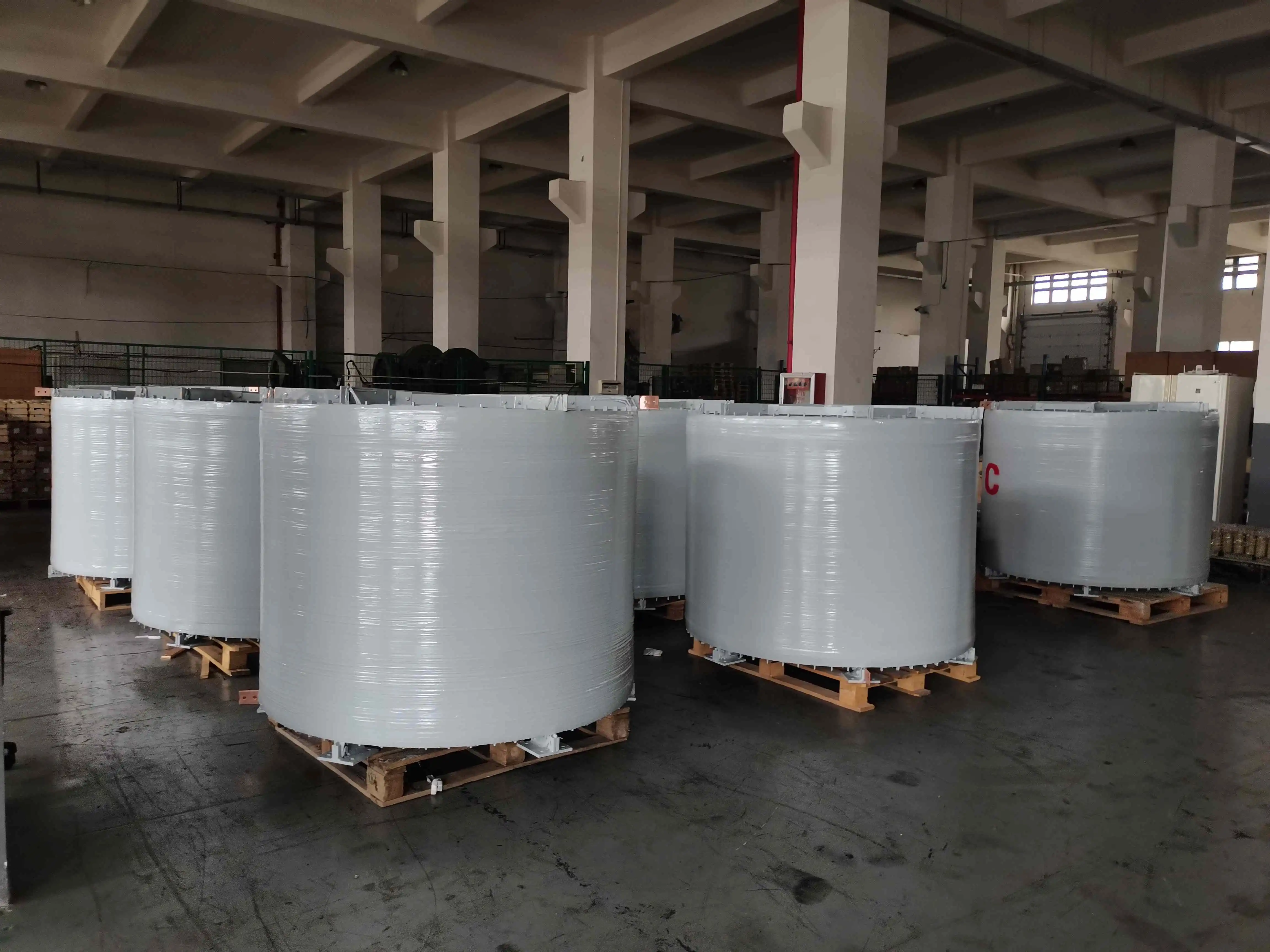

Core Construction and Material Advantages

Dry-Type Air Core Series Reactors are unusual because they have no core. These devices use finely wound aluminum or copper coils separated by air gaps instead of iron or ferrite cores. This simple design eliminates iron-core alternatives' hysteresis losses and eddy current heating. Concentric aluminum coils in the CKGKL series produce regulated inductive reactance while maintaining inductance values regardless of current flow. Encapsulation materials are crucial for durability. The glass-fiber reinforced epoxy resin protects windings against water, solvents, and mechanical damage. This insulating system works at high temperatures without failure with Class F or Class H standards. These encapsulation technologies can manage impulse voltages of 30kV, meeting rigorous IEEE and IEC medium-voltage requirements, according to independent testing.

Electromagnetic Operating Principles

Operates by resisting current changes via electromagnetic induction. The Dry-Type Air Core Series Reactor in series with capacitor banks creates a tuned circuit that inhibits harmonic frequencies but allows current at the fundamental frequency. This dual feature prevents harmonic voltage amplification and restricts inrush current while the capacitor is activated. When operating properly, the device absorbs harmonic energy from nonlinear loads such variable frequency motors, arc furnaces, and renewable energy inverters. From low load circumstances to fault currents 100 times its rated capacity, the device functions reliably due to its linear inductance. This constancy helps safeguard equipment in substations and industrial facilities that need precise reactance values under all operating situations.

Comparative Advantages for Industrial Applications

Facility managers must consider performance, safety, maintenance, and lifetime costs when assessing power quality equipment. In every field, Dry-Type Air Core Series Reactor technology is beneficial. No flammable insulating oil means no fire dangers or costly containment devices required for oil-filled units. Since there are no core laminations to loosen, oil to sample and replace, or magnetic parts to get saturated during transient occurrences, maintenance takes longer. Natural air convection makes temperature adjustment simple. Open coil design enables air circulate freely through structure, eliminating heat without pumps, radiators, or forced cooling. Operational losses at full load are generally less than 0.05%, which is far better than iron-core systems, where core losses increase energy usage. For data centers and manufacturers that care about energy efficiency, these efficiency increases cut operational costs and improve power consumption effectiveness ratios.

Step-by-Step Guide to Installing Dry-Type Air Core Series Reactors

For deployment to go smoothly, it needs to be carefully planned and carried out in stages. To make sure installations meet technical requirements, safety codes, and operational deadlines, procurement teams, electrical contractors, and facility engineers must work together.

Pre-Installation Site Assessment

Engineering teams should ensure the Dry-Type Air Core Series Reactor's environmental conditions are suitable before delivering the equipment. The CKGKL series performs reliably between -40°C to +55°C, making it suitable for climate-controlled substations and hard outdoor applications. Thinking about altitude is crucial. Xi'an Xidian develops plateau-type equipment for up to 4,000 meters above sea level, when less dense air reduces cooling and dielectric strength. Electrical system analysis must ensure reactor inductance, capacitor bank ratings, and current protection scheme compatibility. Standard CKGKL series units have 3,464.1V, which matches most medium-voltage systems. However, high-voltage applications may be met with bespoke voltage ratings up to 36kV. Precision inductance tolerances (±3% standard or ±1% bespoke) provide accurate tuning of harmonic filters. This prevents off-frequency resonance circumstances from worsening harmonic distortion. Mechanical issues include thermal expansion clearance, structural support that can sustain electrodynamic stresses during fault situations, and inspection access. Although monolithic, mounting foundations must properly distribute weight and prevent vibrations from damaging neighboring equipment.

Mechanical Mounting and Electrical Connection Procedures

Install the winding carefully to maintain its integrity. Epoxy encapsulation protects, but mechanical stress or impact might produce small insulating fractures. Instead of overloading coil structures, lifting points should distribute the load over the reactor frame. Shock-absorbing carts or air cushion systems are best for transferring objects in unlevel structures. Manufacturers usually determine mounting orientations. Vertical installations provide the finest natural convection cooling, but horizontal designs may perform better in small spaces. Anchor bolts must be tight enough to restrict movement without overpressing mounting feet. Building vibrations are blocked using isolation pads. In noisy areas like hospitals and data centers, this is crucial. Electrical terminations must be checked for connection integrity and contact resistance. Stopping galvanic corrosion requires special approaches when connecting aluminum coil terminations to copper bus work. Antioxidant chemicals, bimetallic transition plates, and torque sequences provide a long-lasting connection. It's important to link capacitor banks in series to avoid charging capacitors before reactors are completely connected. This crucial safety guideline protects people and equipment.

Commissioning Testing and Performance Verification

After physical installation, the system is completely checked before being switched on. A visual inspection ensures that all connection points are correctly attached, that the packaging was not damaged during delivery, and that the clearances exceed code requirements. Insulation resistance testing using megohm meters ensures the winding-to-ground dielectric is robust. The measurements should exceed IEEE C57.16 minimums. Measured inductance at the rated frequency confirms the item fulfills tolerances. Testing equipment monitors current flow from AC voltage at the system frequency to produce precise inductance values. Deviations beyond the allowed limits indicate winding damage or manufacturing faults that must be addressed before commissioning. Thermal imaging reveals hot regions after initial energization, which may indicate connection or cooling issues. Baseline temperature profiles guide maintenance checkups. The capacitors should be turned on and off in controlled settings during commissioning to ensure they restrict inrush current and the tuned circuit prevents harmonics throughout the frequency range.

Best Practices for Maintaining Dry-Type Air Core Series Reactors

Proactive maintenance plans make sure that equipment is always available and lasts longer. Compared to oil-filled or iron-core alternatives, Dry-Type Air Core Series Reactor designs have lower lifecycle costs because they require less maintenance. However, regular inspections are still needed to find problems early.

Routine Inspection Schedules and Testing Protocols

Optimal inspection intervals balance thoroughness and operational demands. Every three months, visual checks reveal encapsulation fractures, discolored terminals that indicate overheating, and contaminant accumulation that might reduce cooling performance. Walk-through assessments are quick and detect issues before they become significant. Annual thorough inspections include diagnostic activities. Slow losses in insulation resistance indicate water or chemical infiltration and need to be investigated. Thermographic studies when the machine is loaded reveal temperature distribution variations that indicate connection or winding failure. Vibration analysis reveals structural issues or improperly installed items that might cause mechanical breakdowns. Check connection torque during yearly shutdowns. Over time, temperature and mechanical vibrations diminish termination bolt tension. Re-torquing to specification prevents heat-generating high-resistance connections. Surface dust and debris reduce cooling efficiency, therefore physical cleaning removes it. In factories that release airborne pollutants, this is crucial.

Troubleshooting Common Issues and Corrective Actions

When performance fails, knowing the most prevalent causes helps you diagnose the problem quickly. One of the most prevalent issues is overheating, which may cause discolored terminals, softened epoxy around connection points, or rapid temperature rise on thermal imaging. Lack of airflow, excessive connection resistance, or overusing the device are reasons. Increasing airflow, repairing connections, or decreasing load may solve thermal performance. Lower megohm readings or traces on the encapsulation indicate insulation breakdown. Chemical exposure, long-term overvoltage, and environmental deterioration diminish dielectric strength. When insulation resistance decreases below a specific level, it must be replaced since repairs can't restore dielectric qualities. The material you buy impacts its susceptibility. UV-resistant, silicone-coated fiberglass may tolerate severe outdoor conditions better than normal fiberglass. Noise changes indicate mechanical issues. Dry-Type Air Core Series Reactors operate softly compared to magnetostrictive iron-core reactors, therefore strange humming or buzzing is an indication of problems. Loose hardware vibrating at double the system frequency, improper insulating partial discharge activity, or excessive electromagnetic forces may cause sounds. Acoustic analysis finds noise sources to assist fix tiny issues before they become severe failures.

Predictive Maintenance Technologies and Monitoring Systems

Advanced facilities increasingly adopt condition-based maintenance. These approaches increase inspection intervals and forecast failures. Temperature sensors in the windings monitor temperature and emit warnings when it exceeds limits. Data analytics solutions monitor temperature changes and construct predictive models by linking thermal performance to loads and surroundings. Partial discharge monitoring detects insulation breakdown early. After detecting electromagnetic signals of breakdown, high-frequency current transformers may be repaired before they fail. This technique is beneficial in hospital power systems, data center infrastructure, and utility substations that service critical loads, where unscheduled power outages may be disastrous. Complete asset health dashboards by integrating with facilities management systems. Centralized interfaces provide maintenance staff real-time status, historical performance, and prediction statistics. Automated work order creation schedules equipment checks by condition rather than time. This optimizes maintenance resources for big equipment groupings.

Comparing Dry-Type Air Core Series Reactors: Choosing the Right Solution for Your Needs

To make a procurement decision, you have to compare different reactor technologies based on the needs of the application. Cost, performance, compatibility with the environment, and ease of maintenance are all factors that affect the best choice for a Dry-Type Air Core Series Reactor.

Technology Comparison: Air Core versus Iron Core and Oil-Filled Designs

The advantages of Dry-Type Air Core Series Reactor technology for linear inductance and low maintenance are evident. Air-core reactors maintain inductance throughout the working range, unlike iron-core reactors, which become saturated at high current levels. Linearity is crucial in harmonic filter applications, where accurate tuning is essential. Magnetic saturation alters resonance frequencies in iron-core units, causing harmful harmonic voltage amplification. Oil-filled reactors are tiny and cool, but they harm the environment and humans. Containment systems, oil testing, and leak repairs increase lifecycle costs and operating complexity. Oil disposal and handling regulations make running a business difficult. Fire safety rules frequently necessitate costly suppression systems around oil-insulated machinery. These methods are unnecessary for dry alternatives. The CKGKL series fulfills NFPA 70 fire regulations without additional protection. This simplifies fire-safe installations in hospitals, data centers, and commercial buildings. The middle reactors are iron-core dry-type. They're smaller and oil-free than Dry-Type Air Core Series Reactors. Unfortunately, core losses reduce efficiency, magnetic saturation restricts fault current capability, and noise levels frequently exceed air core units. The acoustic advantage is crucial in crowded situations where noise pollution makes people uncomfortable and makes regulations difficult to obey.

Supplier Evaluation Criteria and Certification Requirements

Long-term happiness depends on selecting competent manufacturers and distributors. International quality standards are a fundamental approach to verify a company's manufacturing skills. ISO 9001 certifies systematic quality management, while ISO 14001 certifies environmentally responsible production. Xi'an Xidian claims many patents and certificates for its revolutionary design. Product testing records should contain type test results from recognized laboratories that demonstrate compliance with standards and safety regulations like IEC 60076-6 for reactors and IEEE 519 for harmonic control applications. Product certification from UL, CSA, or CE indicates regional regulatory compliance. This simplifies installation permission for authorities. Excellent vendors stand out with after-sales support. Technical assistance in English, Arabic, and Mandarin helps multinational project teams communicate. Critical issues need fast responses, and 24/7 help reduces emergency downtime. The guarantee should cover materials and labor for one to three years, depending on how demanding the task is.

Procurement Considerations: Lead Times, Customization, and Value Engineering

Standard product availability influences project duration. Off-the-shelf items may be sent fast but may not meet your demands. The CKGKL series features plug-and-play integration and accurate inductance tolerances, but bespoke requirements take longer. The balance between standardization and optimization affects short-term and long-term expenses and outcomes. Customization enables you create challenging application solutions. Changing voltage ratings, enclosure protection levels (IP54/IP65), or seismic certifications may meet site requirements. Xi'an Xidian can produce tailored solutions in eight weeks, which fits tight project timeframes without losing technological optimization. Early in the design phase, engineering teams should discuss value engineering options with suppliers to decrease costs without hurting functionality. When pricing are volume-based, bulk purchases across numerous facilities or projects are rewarded. Establishing favorite suppliers enables you organize production around their availability and costs. Different providers offer different installation levels. To calculate the project cost, you must include all expenditures, not simply equipment purchase. These expenses include transportation, installation, and project launch.

Ensuring Long-Term Efficiency and Reliability: Optimization and Upgrades

Power infrastructure investments last for decades, so they need to be planned in a way that takes into account how operations change and how technology improves.

Performance Enhancement through Design Optimization

Operating margins and equipment durability depend on thermal performance. Better cooling methods boost capacity or decrease full-load operating temperatures. Optimized coil shape enhances surface area without increasing footprints, improving natural convection in the Dry-Type Air Core Series Reactor. Some usage need forced air cooling systems with greater continuous ratings in temperature-controlled locations. Improving electrical performance largely involves reducing losses and improving harmonic suppression. Modern winding designs minimize eddy current losses in high-frequency harmonic current conductors. Computer modeling during design enhances performance by determining the optimal turn spacing, conductor cross-sections, and shape within physical constraints. Modular builds may increase grow rooms. Initial installations manage existing loads and allow capacity upgrades without system replacement. Current passes across many units in parallel reactors, providing redundancy during maintenance or component failure. This strategy is ideal for data centers and factories that develop slowly alongside enterprises.

Integration with Modern Monitoring and Control Systems

Sensors and communication are digitizing power distribution equipment. Facility management systems receive real-time reactor data from smart reactors with temperature sensors, current transformers, and communication interfaces. This link allows extensive monitoring that passive electrical parts couldn't. Data analytics systems analyze operational data to improve. Machine learning algorithms can recognize subtle pattern alterations that indicate future difficulties. This permits proactive maintenance to prevent issues. Old data helps plan capacity and infrastructure investment by showing loading trends. Automated protection and control systems make judgments based on reactor condition. Based on harmonic spectra, adaptive harmonic filtering adjusts tuning frequencies. This improves suppression when load characteristics vary. Reactive power adjustment with HVAC loads, lighting systems, and process equipment minimizes utility consumption and improves building power factor.

Conclusion

Correctly installing and maintaining Dry-Type Air Core Series Reactors affects their performance, lifespan, and power quality. Coreless design eliminates magnetic saturation, reduces maintenance, and suppresses harmonics better than alternative solutions. Structured installation and maintenance practices ensure that new technology works well with existing systems and identify issues before they become big issues. Procurement choices should include lifespan costs, not simply the initial purchase price. This entails assessing supplier capabilities, customization choices, and after-sales assistance. The Xi'an Xidian CKGKL series uses advanced reactor technology. It uses tried-and-true design concepts, cutting-edge materials, and precision production to build reactors that perform under challenging conditions without maintenance.

Frequently Asked Questions

1. How often should we inspect air core reactors in industrial environments?

Visual checks every three months reveal damaged encapsulation, discolored terminals, and impurities. Annual complete inspections should include insulation resistance tests, thermographic surveys, connection torque checks, and physical cleaning. Facilities exposed to extreme temperatures, chemicals, or dust may require more frequent inspections. Continuous monitoring with embedded sensors is preferable than periodic inspections in critical applications where failures are costly.

2. Why does professional installation matter for reactor performance?

Installation errors may compromise performance and safety. Inrush currents without reactor protection might destroy capacitors if connected incorrectly. Incorrect installation may cause the gadget to move when there's a problem, stressing the electrical connections and perhaps causing mechanical breakdowns. Poor electrical terminations cause high-resistance connections that overheat and fail. Professional installers are aware of these dangers and conduct steps to ensure the system works reliably and maintains the guarantee.

3. What causes reactor failures and how can we prevent them?

Overheating, caused by insufficient airflow, excessive temperatures, or overuse, is the most prevalent cause of failure. Make sure there are adequate clearances, clean the surfaces so they can cool, and check the loads to prevent issues. Overvoltage, chemical pollution, and physical damage degrade insulation. These dangers may be mitigated by purchasing the correct materials and monitoring the environment during usage. Because temperature cycling and vibration diminish bolt tension, the connection fails slowly. Regular torque checks keep the contact firm throughout its life.

Partner with Xi'an Xidian for Superior Air Core Reactor Solutions

Xi'an Xidian provides comprehensive reactor solutions supported by decades of technical expertise and top-notch manufacture in over 40 countries. The CKGKL series Dry-Type Air Core Series Reactor maker uses cutting-edge design and tight quality control to ensure every unit works dependably in your hardest applications after 72 hours of thermal cycle validation. As a leading supplier of medium and low-voltage electrical equipment, we provide specialized solutions for industrial facilities, data centers, substations, and commercial buildings. Our multilingual technical staff can install, commission, and maintain your equipment throughout its lifespan. Get in touch with our engineering experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your power quality problems and find out how our certified ISO 9001 and ISO 14001 manufacturing processes can give your operations the dependability they need.

References

1. American National Standards Institute. (2019). IEEE Standard Requirements, Terminology, and Test Code for Dry-Type Air-Core Series-Connected Reactors. IEEE C57.16-2011 (Revision of IEEE C57.16-1996).

2. International Electrotechnical Commission. (2017). Power Transformers – Part 6: Reactors. IEC 60076-6 Edition 2.1 2017-08.

3. Institute of Electrical and Electronics Engineers. (2014). IEEE Recommended Practice and Requirements for Harmonic Control in Electric Power Systems. IEEE Standard 519-2014.

4. National Fire Protection Association. (2020). National Electrical Code. NFPA 70-2020 Edition, Articles 460 and 470.

5. Sankaran, C. (2018). Power Quality Handbook: A Practical Guide. McGraw-Hill Education, Chapter 8: Harmonic Filters and Reactors, pp. 287-324.

6. Wakileh, G. J. (2021). Power Systems Harmonics: Fundamentals, Analysis and Filter Design. Springer Berlin Heidelberg, Section 5.4: Series Reactor Applications in Harmonic Mitigation, pp. 195-238.
