Polymeric Lightning Arrester for AC system: How It Works
2026-08-20 16:19:22
When lightning strikes an electrical network, the consequences can be catastrophic—damaged transformers, circuit breaker failures, and costly downtime. A polymeric lightning arrester for AC system acts as the first line of defense, redirecting dangerous voltage surges safely to ground before they can harm critical equipment. Unlike outdated porcelain models, modern polymeric arresters combine metal oxide varistor (MOV) technology with advanced polymer housings, offering a lightweight, durable, and maintenance-friendly solution. The core mechanism is elegantly simple: under normal operating conditions, the arrester behaves as an insulator with high resistance. When a surge occurs, the zinc oxide elements instantly reduce resistance, creating a low-impedance path that channels excess energy away from sensitive components within microseconds.

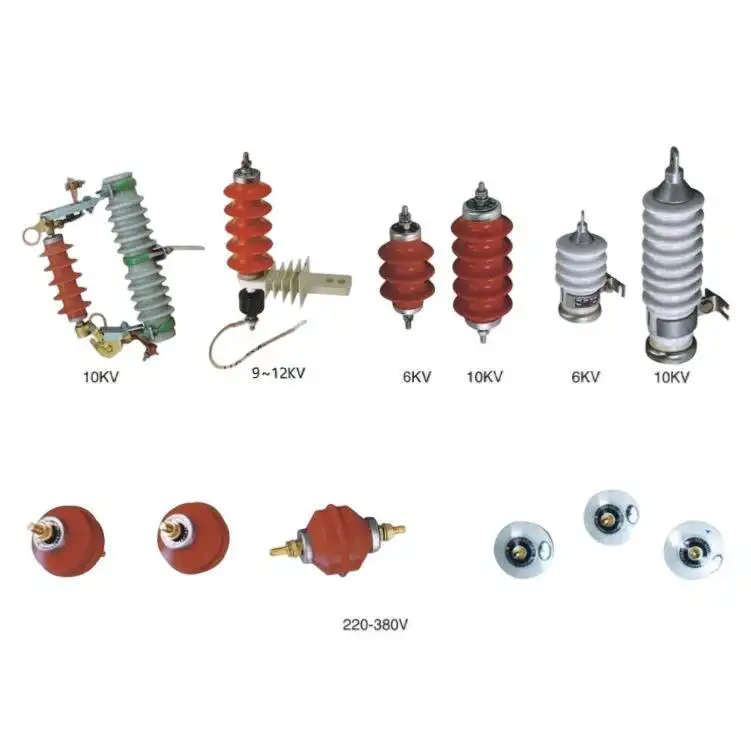

Understanding Polymeric Lightning Arresters for AC Systems
The change from ceramic to polymer-based surge protectors is a big step forward in the stability of power systems. But traditional arresters were fragile, heavy, and easily contaminated by the environment, even though they worked well. Innovative material science and engineering are used in polymeric lightning arrester for AC system structures to get around these problems.
Core Working Principle
A stack of zinc oxide discs is at the heart of every polymeric lightning arrester for AC system. These varistor blocks have voltage-current traits that are not straight, which makes them perfect for protecting against surges. When the grid is working normally, the arrester has a very high resistance (measured in megaohms) and only leaks a few microamperes of current. A lightning strike, switching processes, or a fault can all cause a transient overvoltage. In nanoseconds, the resistance drops sharply to milliohms. This quick change lets the device safely send thousands of amps to ground, limiting the voltage to a safe level and keeping equipment further down the line from losing its protection.
Material Advantages
The polymer shell is usually made of silicone rubber or ethylene-propylene rubber, which are both very good at keeping water out. This hydrophobicity stops water from making electrical paths on the arrester surface, which is a common way for things to fail in dirty or wet places. The housing is formed right onto the MOV stack, making a hermetic seal that keeps wetness out of the internal parts. This is very important when installing in seaside substations or shipping goods by sea.
Design Innovation
These days, polymeric lightning arresters for AC systems have many safety measures. By properly letting gas out if internal problems happen, pressure relief devices stop fails that could explode. Advanced models have a two-unit configuration that provides redundancy. If one column starts to break down, the second one will keep protecting it until maintenance is done. This way of thinking about design fits with how export sellers actually work. They sell full switchgear packages, and system uptime has a direct effect on how profitable a project is.
Key Design and Technical Specifications of Polymeric Lightning Arresters
When matching arresters to specific project needs, it's important to understand technical factors. This is especially true for traders who serve foreign markets with different voltage standards and environmental conditions.
Critical Performance Parameters

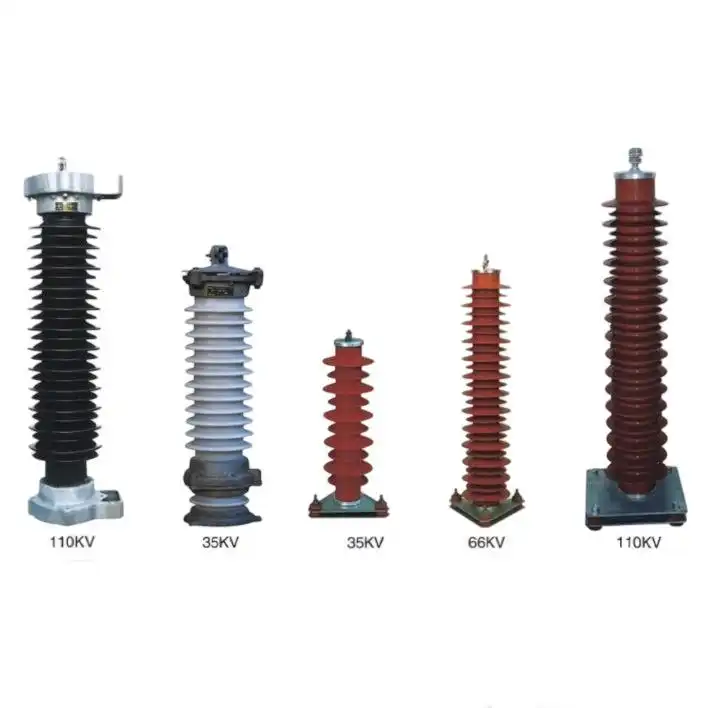

Modern surge arrester engineering can be seen in the YH10W-216/562W, which is designed to work with high-voltage transmission systems. With a rated voltage of 216kV, it can be used in 220kV class substations, which are popular in Africa, Southeast Asia, and South America where infrastructure projects are still being built. The U1mA parameter, which is the DC reference voltage of ≥314kV, shows the voltage at which 1mA of current flows through the device. This is a key sign of the quality of the varistor and its ability to stay stable at high temperatures. This level has to stay the same over decades of use, even when temperatures change and electrical stress is put on it.
The arrester's ability to handle surface contamination is based on its creepage distance, which is given as 31 mm/kV. This measure is very important in places like industrial areas with lots of pollution, seaside areas with salt spray, and deserts with lots of dust. This specification must match the pollution severity level (as defined in IEC 60815) of the destination site for traders who put together full electrical packages. When you don't account for enough creepage, surface tracking, flashovers, and failure before they should happen.
Sealing Technology
The triple-sealing process used in good production makes many hurdles against moisture, which is metal oxide arresters' main enemy. Compression plugs, adhesive layers, and hydrophobic gel fills are used at the contact between the polymer shell and the internal parts. As part of the factory acceptance testing, the seal is put under water immersion and helium leaks are found to make sure it is solid before it is shipped. This focus on sealing answers an ongoing worry among export traders: damage happening during weeks-long trips at sea in container ships without temperature control.
Certification and Standards Compliance
International projects need to follow the IEC 60099-4 guidelines, which spell out how metal oxide surge arresters should work. Certification shows that the device has been through strict type tests, such as operating duty tests (repeated surge applications), thermal stability checks, and tests to see how much current it can handle when it shorts out. Having IEC certification makes technical submissions easier and speeds up the project approval process for sellers who work with more than one market. This shortens the time it takes to go from design to delivery.
Polymeric vs Traditional Lightning Arresters: A Comparative Analysis
When weighing the initial costs of a purchase against the long-term costs of running it, it's important to know the real differences between arrester methods.
Performance in Harsh Environments
Clay arresters have been used before, but they come with their own risks. Their ceramic housings can break due to internal arc problems, mechanical shock during shipping, or thermal stress from sudden changes in temperature. When a porcelain arrester fails catastrophically, sharp pieces become projectiles that put people working in the substation at risk. This risk isn't there with polymeric lightning arrester for AC system designs because the bendable housing has flaws that let pressure escape safely without breaking up. This feature is very useful in unmanned substations or sites that are hard to get to for upkeep.
The hydrophobic surface of polymer housings actively pushes water away, and the surface resistance stays high even when industrial contaminants or salt deposits are on it. Because porcelain is hydrophilic, its surfaces collect thin layers of water that raise leakage current and lower pollution flashover voltage. In real life, a polymeric lightning arrester for AC system keeps protecting even when conditions would render a ceramic equivalent useless. This lowers the cost of unexpected power outages and emergency replacements.
Total Cost Considerations
Lifecycle economics favor polymer technology, even though polymeric lightning arresters for AC systems may cost a little more per unit than entry-level porcelain models. Because it's lighter (about 40–60% less than porcelain), it costs less to ship, which is important when sending containerized switchgear parts. Installation needs easier mounting platforms and fewer people, which lowers the cost of work on-site. The longer working life—often more than 25 years with little upkeep—also increases the return on investment.
Maintenance times are very different. Regular checks should be done on porcelain arresters to look for cracks, seal decay, and moisture contamination. Polymeric units only need to be visually checked and thermal images taken every so often to find heating patterns that don't seem right. This maintenance profile works well for projects that bring electricity to rural areas or for green energy sites that are far away and don't get skilled techs very often.
Installation, Maintenance, and Troubleshooting Guidelines
Installing arresters correctly affects how well they work and how long they last, so contractors and project managers who work with imported equipment packages need to know this.
Installation Best Practices
Mounting orientation is important. Installing things vertically so that the outlets face up keeps water from building up at the connection points. To lower inductance, grounding connections must use stranded copper conductors with few bends. This is because sharp corners in ground leads cause voltage drops during fast-rising surges, which makes the polymeric lightning arrester for AC system less effective at protecting the system. It is very important to follow the torque specs for terminal bolts exactly. If you over-tighten them, the seals will break, and if you under-tighten them, moisture will get in and the contact resistance will go up.
The ground lead shouldn't be longer than 1.5 meters, but sometimes longer runs are needed because of how the substation is set up. For every meter of grounding wire added, inductance goes up by about 1 to 1.5μH. This means that there is more residual voltage when there are fast current bursts. When linking several arresters in a bay to a shared ground bus, ground resistance changes that could cause currents to flow between units are kept to a minimum.
Routine Maintenance Procedures
As part of the annual check process, the housing must be looked at visually for damage, discoloration, or tracking marks that show surface discharge activity. When thermal imaging surveys are done during times of high load, they show that there is extra heat production, which could mean that there is more leakage current or some varistor degradation. Using special arrester monitors to measure leakage current gives a precise health assessment. Readings above 50µA usually mean that more research needs to be done, and currents above 200µA mean that the system is about to fail.
Common Failure Indicators
Cracks that can be seen in the polymer housing are rare, but they need to be replaced right away because they make it less waterproof. During normal operation, hearing hissing or corona noise is a sign of internal partial discharge, which is a sign of failure to come. Discoloration, especially white chalking on a shell that is usually gray or brown, is a sign of UV damage or too much heat exposure. If more than one unit in a substation starts to break down in the same way, you should look into widespread problems like harmonic overvoltages from power electronics or voltage imbalances from broken transformer tap switches.
Procuring Polymeric Lightning Arresters: What B2B Buyers Need to Know
To do business internationally, you need to know more than just technical specs. You also need to know about economic terms, wait times, and quality control procedures that keep you from getting low-quality goods.
Selecting Qualified Manufacturers
Reputable makers keep environmental standards like ISO 14001 and quality management systems like ISO 9001. This shows that production is controlled in a planned way, rather than being different from batch to batch. Check to see if the company has its own testing facilities that can do standard tests like partial discharge, DC reference voltage, and residual voltage verification, as well as access to third-party labs for type testing. Manufacturing transparency, such as a willingness to be audited by the factory, sets serious producers apart from trading companies that rebrand outsourced goods whose origins are unknown.
Buying in bulk from companies that have more than one product line makes shipping and quality control easier for export sellers who put together full packages of transformers, switchgear, and safety devices. Because Xi'an Xikai sells switchgear, transformers, and surge protection devices, customers can buy everything they need from a single source. This makes it easier to coordinate orders and saves money on freight costs when shipping mixed loads in containers.
Order Quantities and Lead Times
Depending on the voltage class, polymeric lightning arresters for AC systems usually have a minimum order quantity of 10 to 50 units. However, for pressing needs, smaller lots are sometimes possible at a higher price. Standard production lead times for catalog items are 6 to 8 weeks, but they can be up to 12 weeks for custom configurations that require non-standard creepage distances, special mounting brackets, or built-in monitoring systems. Strategic buyers keep a backup stock of common ratings to support accelerated project timelines. They do this by balancing the costs of keeping inventory with the opportunities lost due to delayed launching.
Quality Verification and Documentation
During factory acceptance testing, important factors should be tested in front of a witness. These include DC reference voltage to check the quality of the varistor, leakage current measurement to make sure the seal is intact, and residual voltage testing to make sure the safety features are working properly. Ask for test certificates that can be linked to calibrated instruments instead of standard templates. It's also important to check the packaging. Arresters should be sent in separate boxes with desiccant packs and shock indicators, and then they should be put together in wooden crates for shipping by sea. If the package isn't good enough, it will soak up water and get damaged during long ocean voyages.
There must be operation manuals in English (or the language of the target market), installation drawings with exact measurements, test results with measured values (not just "pass" notations), and certificates of compliance for all relevant standards in the documentation packages. Missing paperwork slows down customs clearance and makes handing over to the end user harder, which could lead to penalty clauses in engineering contracts.
Conclusion
The polymeric lightning arrester for AC system is an advanced technology that has been used in the field for a long time and has been shown to protect modern power networks while getting around the problems with older designs. It is the best choice for both new installations and retrofit projects because it reliably stops surges, is resistant to environmental damage, and is easy to use. When procurement professionals understand the technical details, like choosing the right creepage distance and making sure the seals are tight, they can choose the right models that meet both performance needs and cost concerns. As more people around the world get electricity, especially in developing countries with bad weather and lots of pollution, strong surge protection will become even more important for keeping the grid reliable.
FAQ
1.What power level should I choose for my project?
IEC 60099-5 says that the rated voltage (Ur) of the arrester must be higher than the system's maximum continuous operating voltage (MCOV) by a certain amount. For a 220kV system with an MCOV of about 176kV, it is standard practice to choose a 216kV arrester such as the YH10W-216/562W. For projects above 1000 meters, the voltage may need to be lowered or higher-rated types may need to be chosen to make up for the weaker air insulation.
2.How do I figure out the right creepage distance?
IEC 60815-3 says that the required creeping distance depends on how bad the pollution is. 16–20 mm/kV of light pollution in rural areas, 20–25 mm/kV in industrial areas, 25–31 mm/kV in coastal or chemical plants, and more than 31 mm/kV in very heavy areas. The YH10W-216/562W's 31mm/kV grade is good for areas with a lot of pollution, giving it room to work in situations that get worse over time.
3.Can arresters be kept for a long time before they are used?
Yes, but the conditions of keeping are very important. Keep things stored inside between 15°C and 30°C and below 70% relative humidity. Keep the units in their original, sealed boxes until you are ready to place them. Check the seals before using them, because damaged packaging could let moisture in, so you need to test them before installing them to make sure they're still good.
Contact Xi'an Xikai for Tailored Surge Protection Solutions
To get effective surge protection for your export projects, you need more than just a catalog. You need a manufacturing partner who knows how foreign power distribution works in order to make it work. Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. has decades of experience as an engineering firm in developing polymeric lightning arrester for AC system. They have multiple patents to back up their work and have shown that they can perform in tough global settings. Our factories follow strict quality control procedures, such as high-voltage shock testing and triple-seal verification, to make sure that every unit meets IEC 60099-4 standards before it is shipped. Whether you need standard configurations for fast delivery or custom creepage distances for unique uses, our technical team is here to help you from the specification stage all the way through commissioning. As a reliable provider of polymeric lightning arresters for AC systems, we know how hard it is to compete in the business world. That's why we support your projects with clear pricing, flexible minimum orders, and paperwork packages that make approvals go more quickly. You can email our buying experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your unique needs and get quotes within 48 hours.
References
1. International Electrotechnical Commission. "IEC 60099-4: Surge Arresters – Part 4: Metal-Oxide Surge Arresters Without Gaps for A.C. Systems." Geneva: IEC Central Office, 2014.
2. Hinrichsen, Volker. "Metal-Oxide Surge Arresters: Fundamentals." Berlin: Siemens AG Energy Sector, 2012.
3. IEEE Working Group 3.4.11. "IEEE C62.11: IEEE Standard for Metal-Oxide Surge Arresters for AC Power Circuits." New York: Institute of Electrical and Electronics Engineers, 2020.
4. Lat, Mohan V. "Thermal Properties of Metal Oxide Surge Arresters." IEEE Transactions on Power Apparatus and Systems, vol. 102, no. 7, 1983, pp. 2194-2202.
5. Nigol, O., and J. Sibilant. "Performance of Metal Oxide Arresters Exposed to Artificial and Natural Pollution." IEEE Transactions on Power Delivery, vol. 5, no. 2, 1990, pp. 1019-1026.
6. He, Jinliang, et al. "Polymer Insulator Surface Wetting and Contamination Flashover Characteristics." Journal of Applied Polymer Science, vol. 89, no. 13, 2003, pp. 3695-3701.
