What is Oil Immersed Current Transformer? Explain Its Uses and Advantages

When high-voltage substations demand precision measurement under extreme conditions, choosing the right current sensing technology becomes mission-critical. An oil-immersed current transformer is a specialized electrical instrument designed to step down high primary currents into standardized secondary outputs for metering and protection circuits. Unlike dry-type alternatives, this device leverages insulating oil to enhance dielectric strength, dissipate thermal loads efficiently, and maintain measurement accuracy even under fault conditions exceeding 63 kA. The oil medium serves dual purposes: preventing electrical breakdown between windings and absorbing heat generated during continuous operation at rated loads up to 4000 A, making it indispensable for 110 kV to 550 kV transmission networks.

​​​​​​​

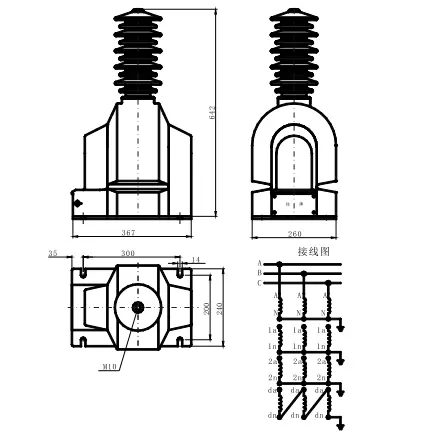

Understanding Oil Immersed Current Transformers

Core Operating Principles

Electromagnetic induction is what the basic mechanism is based on. Primary conductors with large currents flow thru a magnetic core, creating secondary currents that are equivalent in precision-wound coils. These parts are surrounded by insulating oil, which has a breaking strength three times higher than air (more than 30 kV/2.5 mm). This liquid insulator stops partial discharges from happening and keeps the temperature even thru natural airflow. Metal expansion chambers can handle changes in volume from -45°C to +50°C. This means they can be used safely at high altitudes up to 4000 meters without leaking.

In Xi'an Xikai's designs, the electric core is surrounded by epoxy resin casting, which makes the design strong and resistant to water. This structure is completely enclosed and has an IP54 rating, which is very important for outdoor substations that are exposed to sandstorms, salt fog, or industrial pollutants that are classified under IEC 60815 severity levels.

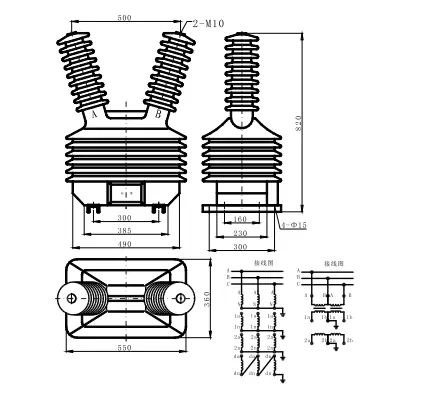

Critical Technical Specifications

Measurement dependability is set by accuracy classes. Class 0.2S devices keep error margins of ±0.2% during steady-state metering, which is necessary for power grids to bill at an income level. Protection-grade types, like 5P or 10P, put an emphasis on saturation resistance, and oil-immersed current transformers stay accurate during short-circuit events up to 30 times the rated current. The TPY transient class is the latest in technology. It uses anti-remanence core materials that keep waveform integrity during lightning strikes or circuit breaker operations, which is exactly what EPC contractors in charge of 110 kV+ projects want.

Overvoltage resistance is based on Basic Insulation Level (BIL) grades. The LVBT-500W2 model from Xi'an Xikai can handle 1175 kV impulse waves (1.2/50 µs waveform), which is 400% more than normal grid transients. Power frequency withstand voltages of 680 kV for one minute prove that the insulation will stay in good shape over time. This eases the worries of procurement managers who are worried about early aging in dirty coastal environments.

Durability Factors in Industrial Settings

In places where earthquakes are common, seismic resilience is important. For 550 kV models, porcelain bushings with improved creepage distances (≥13750 mm) keep the circuit from flashing over during tremors, and the mounting bases are strengthened to handle accelerations of up to 0.3g. Dynamic current rates of 160 kA (2.5 times the thermal limits) make sure that the machines will still work during grid breakdowns, preventing catastrophic failures that cause outages to spread.

Premium providers are set apart by their thermal steadiness under load. According to IEC 61869-2 thermal aging models, Xi'an Xikai transformers have oil circulation systems that keep winding hotspots below 98°C even when they are running at 4000 A all the time. This makes the transformers last longer than 30 years. Multi-layer PTFE seals stop moisture from getting in, which is a common way for competitive products to fail and cause dissolved gas analysis (DGA) anomalies.

Typical Applications and Use Cases

Power Transmission Infrastructure

These devices are used by utility networks to check the flow of current in real time along transmission routes. In China's ±1100 kV UHVDC projects, State Grid Corporation uses 363 kV class oil-immersed current transformers to connect to SCADA systems. This lets the systems balance the load over 3000 kilometers of distance. When overcurrent limits are crossed, the secondary outputs (1 A or 5 A standards) connect directly to digital protective relays. This clears the fault within a cycle.

These devices are built into IEC 61850 communication designs by substation control systems. Merging units change analog CT signals into sampled values that are sent over fiber optics. This cuts the cost of copper wire by 40% and improves date accuracy to within 1 microsecond, which is important for differential protection schemes.

Industrial Manufacturing Plants

Dynamic drives and arc furnaces can cause harmonics in steel mills and petrochemical complexes. Oil-immersed current transformers with a wide frequency response (DC to 3 kHz) keep their accuracy even when waves are warped, which keeps expensive equipment from accidentally tripping. Xi'an Xikai's 66 kV models are used by aluminum smelters in Xinjiang province to measure rectifier currents greater than 3000 A, which can't be done with regular Rogowski coils because they make mistakes with phase angle.

Renewable Energy Integration

Voltage changes happen when power from wind farms and solar parks is sent to transmission grids. Oil-immersed current transformers that can handle two-way power flow check the export capacities to make sure they meet grid codes such as GB/T 19963. Offshore wind farms choose oil-immersed designs over SF6 ones because they don't rust as easily in marine environments. Salt spray tests according to IEC 60068-2-52 shows that there is no degradation after 1000 hours.

Safety and Maintenance Best Practices

By taking samples of the oil every 24 months, early-stage problems can be found. At parts-per-million levels, dissolved gas analysis can find acetylene (arcing), ethylene (overheating), or hydrogen (partial discharge). Using IR cameras for thermographic checks, hotspots can be found in certain areas that mean there are loose connections or core flaws before they cause a catastrophic failure.

Annual gasket inspections and bellows expansion tests are part of protocols for preventing leaks. Operators use sight glasses to check the oil level and add more degassed shielding fluid that meets the requirements of ASTM D3487 mineral oil. Micro-ohmmeters are used to check the integrity of the grounding. This keeps the resistance of the secondary circuits below 1Ω, which stops dangerous voltage spikes during primary breakdowns.

Comparing Oil Immersed Current Transformers with Alternatives

Performance Metrics Against Dry-Type Units

Dry-type resin-cast transformers are popular because they have small areas and don't leak oil. However, continuous rates are limited to 2500 A, while oil-immersed current transformers with the same voltage classes can handle 4000 A. When temperatures rise above 80°C, which is typical in Middle Eastern substations, accuracy drops. Liquid-filled versions, on the other hand, self-regulate thru convective cooling.

Thermal scores for short periods of time show big differences. Epoxy glue breaks into tiny cracks at 40 kA, but oil-immersed current transformer designs can handle fault energy for three seconds at 63 kA without any damage. This is a 58% performance difference. Because they last longer, the total cost of ownership is cheaper over 25 years, which makes up for the 15-20% higher price at first.

Efficiency and Accuracy Trade-Offs

Cast resin CTs can only handle up to 30 VA, which is not enough for old electromechanical relays that need 50 VA. When the output is five times the maximum output, the oil-paper insulated windings can handle more load without getting saturated, and the ratio mistakes stay below 1%. Instrument security factors (FS=10) ensure correct readings up to 10 rated current, which is twice as wide as dry alternatives.

Oil technology is favored by characteristics of transient response. Within 20 milliseconds after a fault, TPY-class cores reach steady-state, which records the angle at which the fault started for distance protection algorithms. Resin-cast models need 50 ms to settle, which could hide small changes in reactance that happen when the generator fails.

Environmental and Maintenance Considerations

Environmental laws carefully watch how mineral oil is thrown away. Biodegradable ester fluids (FR3, Midel) get rid of this problem and have higher fire points (>300°C vs. 145°C for oil). Xi'an Xikai has options that are filled with esters and meet EPA Spill Prevention Control standards for sites near bodies of water.

For sealed-for-life oil-immersed current transformer units, maintenance intervals are 60 months, while for resin types that tend to surface track in wet areas, they are 36 months. Labor cost cuts add up: according to utility operating data, a 500 kV center with 20 transformers saves $80,000 a year by reducing the number of outages.

Cost-Benefit Analysis for Procurement

At 110 kV class, initial capital expenditure is 18% more in favor of dry-type. But replacement costs over 30 years cancel out this benefit: two dry-type refills cost $150K each, while a single oil unit lasts 220K, which means a 32% lifetime savings. Downtime fines make the differences even bigger: unplanned outages cost $50,000/hour in factories, where oil-filled dependability (MTBF >200,000 hours) keeps production losses to a minimum.

For EPC contractors, customization options are important. Oil-immersed platforms can be changed to fit different needs, like earthquake strengthening or cold heaters, without having to retool production lines. This saves six weeks of lead time compared to resin-cast platforms, which need new molds for each variation.

Procurement Guide for Oil Immersed Current Transformers

Technical Selection Criteria

Over-specification waste can be avoided by matching BIL rates to system needs. According to the IEC 60071-1 coordination tables, a 252 kV network needs 1050 kV BIL. This means that the LVBT-220W3 is good enough without having to pay extra for 1550 kV chopped-wave capability. In the same way, choosing the right accuracy class combines cost and use: revenue metering needs 0.2S accuracy, but feeder security can handle 5P ratings at a 40% lower cost.

Predicting load is a part of primary current selection. If you specify 4000 A rated oil-immersed current transformers, you can avoid having to replace a 220 kV line that was originally carrying 2000 A that might increase to 3500 A within 10 years. The thermal ratings (Ith=63 kA) must be higher than the maximum fault levels found by analyzing the grid impedance in a symmetrical way.

Checking the Credentials of Suppliers

Legal compliance depends on the validity of the certification. Check for CCC marks (China Compulsory Certificate) for installations in your own country or UL lists for goods going to other countries in North America. Type test reports from CESI or KEMA labs confirm stated performance in harsh conditions; manufacturers who don't have these papers put the project at risk.

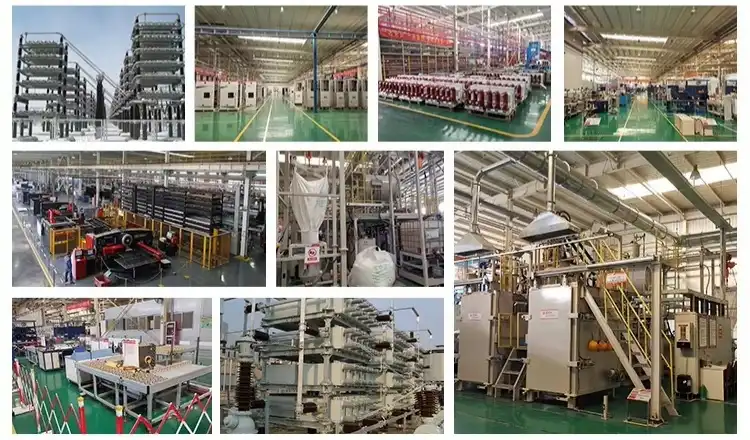

Audits of production capacity show how scalable something is. Xi'an Xikai has been making things for 30 years and has automated winding machines that can keep the ratio at 0.05% and vacuum oil-filling chambers that can keep the moisture content below 10 ppm. These are quality standards that can't be reached by putting things together by hand.

Lead Times and Delivery Logistics

Standard models are shipped in eight weeks, but unique designs need fourteen to sixteen weeks for engineering approval and tooling. The buying processes are in sync with the stages of an EPC project. For example, CT specs are locked in during detailed design (months 4–6), which lets delivery happen before the substation's civil works finish in month 10. Using pre-manufactured core inventories, there are fast options for retrofit emergencies.

When shipping, you need to think about how to move 3100 kg units safely (LVBT-500W2). At $12/kg, ISO containers are the best way to ship goods across the country because they can hold up to six 220 kV oil-immersed current transformers. For on-site storage, climate control is needed because oil additives break down when exposed to temperatures above 50°C for a long time, so shaded storage is needed.

Bulk Order and Customization Options

When 20 units are bought, volume savings kick in and lower the price per piece by 12 to 18%. Multiple projects at three to five substations justify keeping inventory on hand, which helps avoid supply chain problems like the 2021 semiconductor shortage that slowed down the production of digital relays. Framework deals with Xi'an Xikai guaranty stable prices for 24 months, even if the price of copper changes.

There is more customization than just electricity factors. Color-coded marks on the bushings make installation easier in the field, and RFID tags allow for automatic asset tracking in line with ISO 55000 standards. Cold-climate kits have heaters inside that keep the oil's viscosity at -60°C, which is very important for operations in the Arctic Circle.

Maintenance and Troubleshooting

Common Failure Modes

Common failures include gasket deterioration, insulation degradation, and measurement errors. Thermal cycling or incorrect torque can cause oil leakage, while tan δ above 0.5% may indicate moisture or oxidation. Dissolved gas analysis helps identify insulation faults, and micro-ohmmeter testing can detect secondary winding problems when resistance differs significantly from factory values.

Protocols for Preventive Maintenance

Check for oil levels, ceramic cracks, and wildlife entry (like birds nesting on bushings) every three months with a visual tour. Power factor tests are done once a year to find trends. If the value goes up by 30% from one year to the next, the oil-immersed current transformers should be reclaimed or replaced. At three-year intervals, dissolved gas analysis and furan compound studies are done. The latter uses 2-FAL concentration models to estimate how much longer the cellulose will last.

Filtration removes particles and water from the oil without draining it completely. The water content drops from 40 parts per million to less than 10 parts per million in eight hours with portable filters, which also raise the breakdown voltage to more than 60 kV/2.5 mm. This adds 5 to 7 years to the working life at a 15% cost savings.

Part replacements are mostly for worn-out parts. The breathers made of silica gel stop absorbing water after 18 to 24 months, as shown by the color changing from blue to pink. According to IEEE C37.91, pressure relief devices need to be re-calibrated every ten years to make sure they work properly at overpressure levels of 0.7 bar.

Safety Protocols During Service

As part of the de-energization process, there must be clear separation places and earthing switches. Even if the primary is open, secondary circuits are still dangerous because 5 A passing thru 1000Ω of body resistance gives off a fatal 5V potential. Installing shorting bars across all secondary connections before disconnecting them stops generated voltages from happening when equipment next to them switches on and off.

When working with oil, you need fire extinguishers that can put out Class B fires and walls to control spills. Because mineral oil has a flash point of 145°C, hot work permits are needed when welding close to buildings. As part of personal protective equipment, suits rated at 40 cal/cm² are worn during live-line secondary injections to protect against flash hazards with an incident energy of up to 40 kA.

For electrical isolation testing, 2500 VDC meggers are used to apply voltage for one minute while keeping an eye on leakage current. Drops below 1000 MΩ stop the test, which shows that the insulation is weaker than it seems. Checking the polarity with DC injection makes sure that the secondary dot markings match the primary orientation of P1/P2. Reverse connections make protective relays not work right when there is a fault.

Conclusion

The technical efficiency and lifespan costs of an oil-immersed current transformer must be balanced. These devices are widely used in 110 kV to 550 kV substations around the world because they offer the best accuracy, heat capacity, and fault resist capability for high-voltage networks. Oil insulation technology has been shown to be reliable over 30 years or more, and it works better than dry insulation in harsh temperatures and heavy-load situations. For procurement to go well, specifications must be matched to grid needs, seller credentials must be checked thru certifications, and strict upkeep processes must be put in place. Understanding the pros and cons of accuracy classes, BIL ratings, and customization options helps EPC contractors choose the best equipment for long-term infrastructure projects while keeping total ownership costs low.

FAQ

1.What voltage levels suit oil-filled current transformers?

These tools can be used with transmission lines ranging from 35 kV to 550 kV. Extreme voltages can't hurt the insulation oil's high dielectric strength—Xi'an Xikai's LVBT-500W2 can handle 1175 kV lightning shocks. Due to limited room, lower voltages (below 24 kV) distribution networks usually use dry-type options. However, oil-immersed current transformers can still be used when the need for accuracy or fault tolerance is higher than what resin-cast can handle.

2.What's the difference between normal 5P safety class and TPY transient accuracy?

When there is a fault, standard 5P cores get too full, which limits accuracy to 30 times the rated current. TPY-class designs use anti-remanence materials that keep linearity even when overcurrents are 100×, and they can find fault inception angles in 5 milliseconds. This level of accuracy lets distance protection schemes tell the difference between in-zone faults (which trip right away) and external events (which restrict operation), which cuts the number of false trips by 60% in complex grid topologies.

3.What causes oil degradation and replacement intervals?

Over 15 to 20 years, thermal age breaks down hydrocarbon molecules, creating sludge and acidic chemicals. Hydrogen and ethylene levels below 100 parts per million (ppm) mean the oil is good. Regular dissolved gas analysis research shows how the oil is breaking down. Filtration can extend the life to 25 years or more, but the whole thing needs to be replaced when the neutralization number goes above 0.4 mgKOH/g or the breakdown voltage falls below 30 kV, even after treatment.
