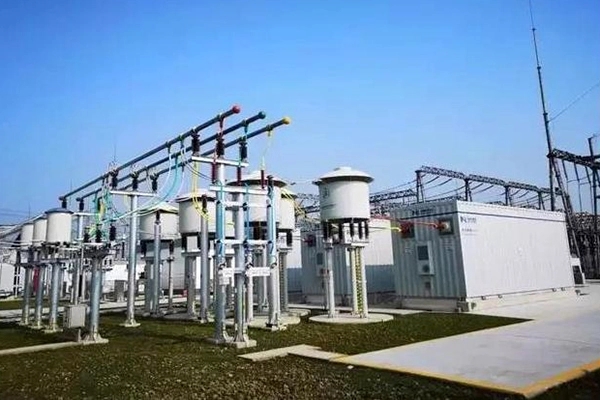

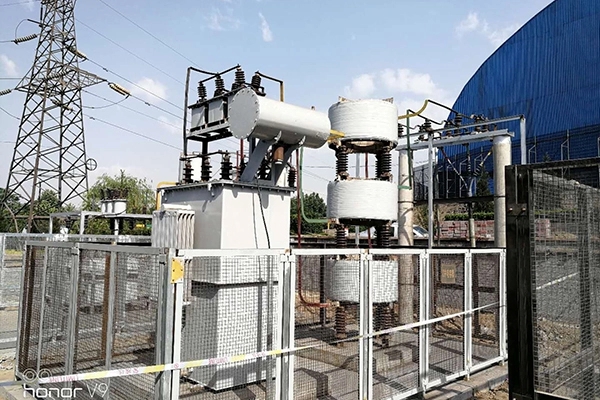

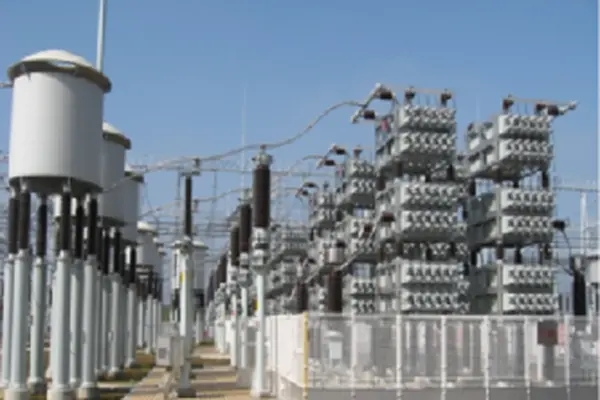

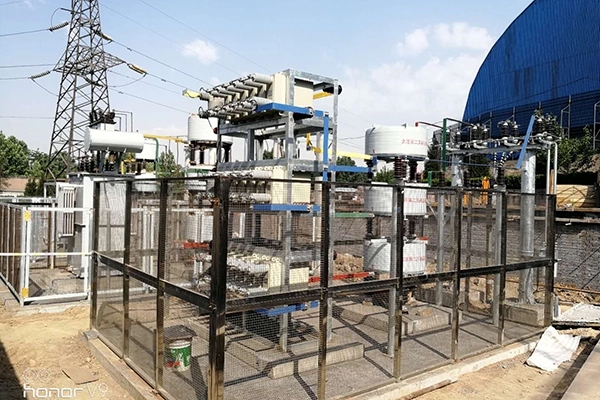

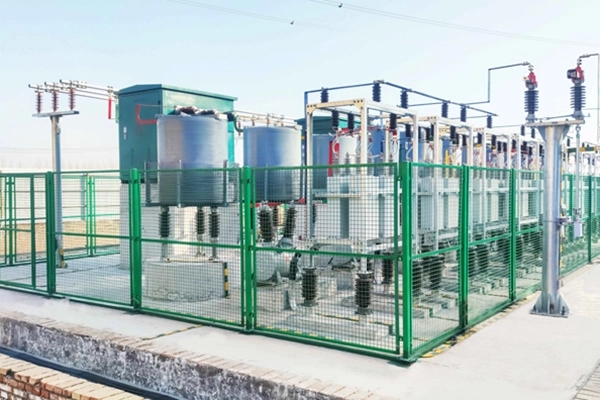

distribution capacitor bank
● The device allows continuous operation at a steady state overcurrent of 1.3 times the rated 2 TBBZ High Voltage Reactive Power Automatic Compensation Device Operation Instructions current due to overvoltage and higher harmonics.
● The difference between the actual capacitance of the device and its rated capacitance shall not exceed (0~+10) % of the rated value, and the ratio of the maximum capacitance to the minimum capacitance between any two terminals of the device shall not exceed 1.06.
● The device can limit the inrush current generated by the capacitor bank instantaneously to less than 20 times the rated current of the capacitor bank.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Distribution Capacitor Bank - Professional Power Factor Correction Solution
Product Introduction
Welcome to Xi'an Xikai's premium distribution capacitor bank solutions, engineered to revolutionize your power system efficiency. Our distribution capacitor bank is a sophisticated assembly of high-performance capacitor units, intelligent switching devices, and advanced control systems designed for medium voltage applications (11kV to 33kV). This cutting-edge equipment generates reactive power locally, correcting power factor issues right at the source while dramatically reducing energy losses and enhancing voltage stability across your electrical network.
Your power system faces constant challenges from inductive loads like motors and transformers that create poor power factor conditions. Our expertly designed capacitor banks solve these critical issues by providing magnetizing current exactly where you need it most, eliminating costly utility penalties and maximizing your system's operational capacity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 11kV - 33kV (Customizable) |
| Reactive Power | 50 kVAR - 10,000 kVAR |
| Rated Current | 630A - 4000A |
| Operating Voltage Range | 1.1 times rated voltage continuous |
| Peak Voltage | Up to 1.2√2Un (including harmonics) |
| Overcurrent Capability | 1.3 times rated current continuous |
| Capacitance Tolerance | 0 to +10% of rated value |
| Inrush Current Limitation | <20 times rated current |
| Altitude Rating | Up to 4000m above sea level |
| Dielectric Type | All-Film Polypropylene |
| Power Loss | <0.2 W/kVAR |
| Protection Rating | IP54 (Standard) / IP65 (Optional) |
Main Features and Advantages
Advanced Dielectric Technology: Our all-film polypropylene dielectric ensures minimal power losses and exceptional longevity, delivering superior performance compared to traditional paper-based alternatives.
Intelligent Control Systems: Equipped with microprocessor-based controllers that automatically adjust reactive power output based on real-time system demands, preventing over-compensation and optimizing efficiency.
Harmonic Filtering Capability: Optional detuned reactor integration protects against harmonic resonance while maintaining excellent power factor correction performance in environments with non-linear loads.
Robust Construction: Hermetically sealed stainless steel casings provide outstanding corrosion resistance and environmental protection, ensuring reliable operation in harsh industrial conditions.
Modular Design: Scalable architecture allows easy expansion and customization to meet your evolving power requirements without complete system replacement.
Practical Applications
Industrial Manufacturing: Perfect for steel mills, chemical plants, and mining operations where heavy inductive machinery creates significant power factor challenges and harmonic distortion.
Utility Distribution Networks: Ideal for substations requiring voltage support and loss reduction across long feeder circuits, especially during peak demand periods.
Renewable Energy Integration: Essential for wind and solar installations to meet strict grid code requirements for reactive power capability and voltage ride-through performance.
Commercial Buildings: Excellent for large facilities with extensive motor loads, HVAC systems, and lighting that require consistent power factor optimization.
How It Works
Your distribution capacitor bank operates by storing and releasing electrical energy in precisely timed cycles. When inductive loads create lagging power factor conditions, the capacitor units automatically supply leading reactive current to balance the system. Our intelligent switching mechanisms monitor power factor in real-time, engaging or disengaging capacitor steps as needed to maintain optimal electrical efficiency. This process reduces the total current flowing through your distribution system, minimizing I²R losses and improving voltage regulation throughout your network.
Manufacturing Excellence
Xi'an Xikai Medium and Low Voltage Electric Co., Ltd. brings over decades of expertise in power distribution equipment manufacturing. Our state-of-the-art production facilities utilize advanced testing procedures and quality control measures that exceed international standards including IEC 60871, IEEE 18, and IEEE 1036. Every unit undergoes rigorous factory testing to ensure flawless performance in your critical applications.
We maintain ISO9001 quality management, ISO14001 environmental management, and OHSAS18001 occupational health and safety certifications, demonstrating our commitment to excellence in every aspect of production.
Why Choose Us
Proven Track Record: As a leading Chinese manufacturer, our products have earned recognition as famous brand products, trusted by customers worldwide for reliability and performance.
Comprehensive Solutions: We provide complete system integration services, from initial design consultation through installation support and ongoing maintenance programs.
Technical Innovation: Our participation in national 863 projects demonstrates our commitment to advancing power distribution technology and delivering cutting-edge solutions.
Global Service Network: With extensive experience in diverse applications and environments, we understand your unique challenges and provide tailored solutions that deliver results.
FAQ
Q: What's the difference between fixed and automatic capacitor banks?
A: Fixed banks provide constant reactive power for base load compensation, while automatic units use controllers to switch steps based on real-time load variations, preventing over-compensation.
Q: Do I need harmonic filtering with my capacitor bank?
A: If your system has significant non-linear loads (VFDs, UPS systems) exceeding 15-20% of total load, detuned reactors are recommended to prevent harmonic amplification.
Q: How long do these units typically last?
A: With proper maintenance, our capacitor banks typically provide 15-20 years of reliable service in normal operating conditions.
Q: Can these banks be installed outdoors?
A: Yes, our units are available in weatherproof enclosures suitable for outdoor installation with appropriate environmental protection ratings.
Q: What maintenance is required?
A: Annual visual inspections, infrared scanning for connections, fuse continuity checks, and power factor controller verification ensure optimal performance.
Contact Us
Ready to optimize your power system efficiency? Our technical experts are standing by to help you select the perfect distribution capacitor bank solution for your specific application. Contact us today for detailed specifications, custom engineering support, and competitive pricing.
Email: serina@xaxd-electric.com
Let us help you reduce energy costs, eliminate utility penalties, and maximize your electrical system's performance with our world-class power factor correction solutions.
