Essential Tips for Choosing Armored Metal-Enclosed Switchgear?

To choose the right Armored Metal-Enclosed Switchgear, you need to carefully look at its technical specs, safety standards, and working needs. In industrial sites, utility substations, and business complexes, this equipment is what makes sure that power is distributed reliably. Knowing about voltage ratings, current capacities, arc-resistance features, and compliance certifications will help you make sure that your investment saves people and increases efficiency. To get solutions that meet both short-term operational needs and long-term infrastructure goals, procurement teams have to find a balance between performance reliability, lifecycle costs, seller trustworthiness, and after-sales support.

​​​​​​​

Understanding Armored Metal-Enclosed Switchgear: Key Features and Benefits

Metal-enclosed switchgear is an important investment in electrical infrastructure because it protects sensitive equipment and keeps workers safe while they are operating and maintaining it. The word "armored" refers to the fully metal-enclosed design that separates busbars, circuit breakers, wires, and control circuits into their own rooms. This way of thinking about design lowers the chance of an arc flash spreading and keeps outside contaminants from damaging electrical shielding.

Distinguishing Armored from Non-Armored Designs

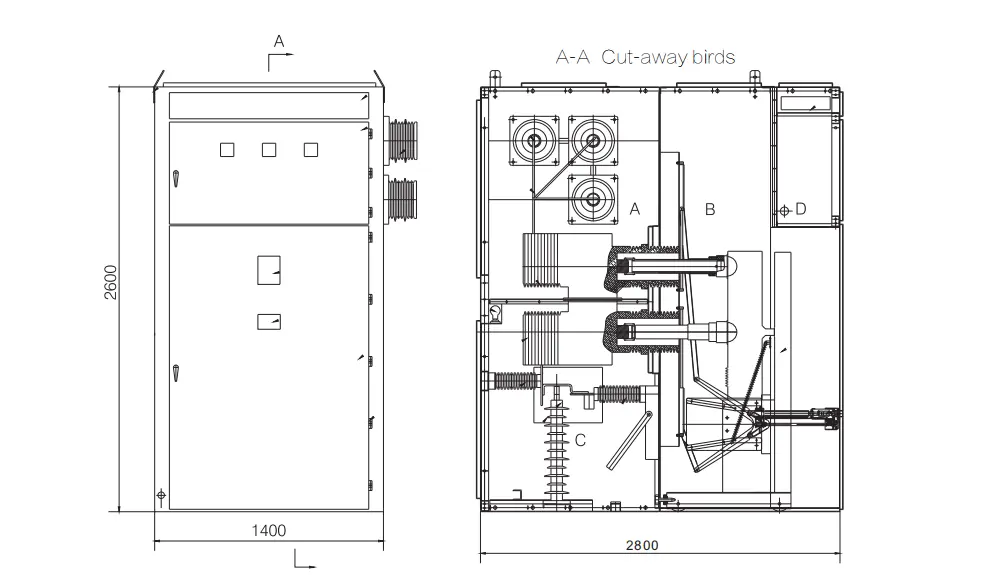

The main difference between metal-enclosed setups that are armored and those that aren't is how the compartments are set up. The busbar chamber, breaker room, wire connection area, and low-voltage control section are all kept physically separate in Armored Metal-Enclosed Switchgear by rigid metal barriers that separate functional zones. This separation stops faults from spreading and lets techs get to certain compartments while parts next to them stay on, which greatly reduces the time needed for maintenance.

Alternatives that aren't armored usually use air insulation instead of full metal dividing. This may be fine for lower-risk areas but doesn't provide the strong fault control needed for heavy industrial uses. When data centers and hospitals look at switchgear choices, armored designs are the ones that get the most attention because power outages have a direct effect on important operations and patient safety.

Safety Standards and Compliance Framework

The design and testing of switches are governed by international standards. IEC 62271-200 sets standards for metal-enclosed switchgear with a rating above 1 kV. It requires strict dielectric testing, temperature rise verification, and mechanical endurance validation. ANSI C37.20.2 sets similar standards for markets in North America. It describes arc-resistance levels and safety steps for usability.

Following these rules makes sure that equipment can handle internal arc faults that don't show up on the outside. When arc-resistant switchgear is tested, controlled fault currents create plasma temperatures above 20,000°C. The enclosure has to hold this energy while pressure relief devices safely let gases escape away from user areas. Professionals in charge of buying things should make sure that potential sellers give them certified test records that show they meet the standards that apply. This is proof that the equipment can protect people when it breaks down.

Performance Factors That Matter

In addition to safety standards, long-term dependability is based on a number of technical factors. Insulation systems need to keep their insulating strength even when the temperature and humidity change. When it comes to putting out arcs, vacuum circuit breakers in metal enclosures work better than older oil or air-blast technologies. This lets designers make smaller units without losing their ability to stop.

Fault tolerance includes mechanical systems that work together to stop bad operations from happening. The five-prevention interlock standard, which is common in Chinese manufacturing standards, stops dangerous actions like closing ground switches while circuits are still live or pulling out breaker carts while they are under load. These mechanical safety features work with electrical interlocks to make two layers of protection that lower the risk of human mistake during switching operations.

Core Criteria for Selecting the Right Armored Metal-Enclosed Switchgear

To match the specifications of switchgear to the needs of operations, electrical factors, weather conditions, and application-specific needs must be carefully considered. Before making a final choice on equipment, procurement teams must look at voltage class compatibility, current carrying ability, short-circuit withstand ratings, and safety coordination.

Voltage and Current Rating Alignment

The voltage classification sets the basic design rules for component values and insulation gaps. Medium-voltage uses usually range from 3.6 kV to 40.5 kV, and each voltage class needs its own busbar spacing and insulation types. The KYN61-40.5 Removable Metal-Clad Switchgear is an example of high-voltage distribution equipment designed for 40.5 kV systems. It can handle currents ranging from 630A to 2500A, based on how the busbars are set up and which breakers are chosen.

The current rates have to be able to handle both steady load needs and expected high demand. For factories that use a lot of motors, the switchgear needs to be able to handle inrush currents that are 8 to 12 times the nominal ratings during starting processes. When utility substations join green energy sources, power flows in both directions, so the breakers need to be able to handle a lot of switching cycles without losing their contact.

Another important criteria is the ability to withstand short-circuits. Equipment has to handle fault currents for as long as upstream safety devices need them to clear faults, which is usually between 1 and 3 seconds. Most industrial uses switchgear with short-circuit ratings of 25 kA or 31.5 kA. However, utility interconnections may need ratings of 40 kA or higher to work with transmission system safety methods.

Environmental and Installation Considerations

The operating setting has a direct effect on how long equipment lasts and how often it needs to be maintained. Most indoor switchgear is designed to be installed in climate-controlled areas with temperatures between -10°C and 40°C and relative humidity below 95%. Extreme conditions need special modifications to facilities. For example, anti-condensation heaters keep moisture from building up in coastal sites, and better insulation materials can be used for high-altitude operations where less dense air lowers dielectric strength.

The KYN61-40.5 works effectively at heights of up to 2000 meters without losing power, so it can be used in industrial zones in hilly areas and substations on plateaus. For installations above this level, you need to talk to the makers to find out what kind of insulation strengthening and cooling system changes are needed.

Enclosure sizes and equipment arrangements are often limited by available space. Modular designs let you make your own bay arrangements that make the best use of space while still allowing for safe entry for upkeep. Removable circuit breaker trolleys make fixes easier because the whole bay doesn't have to be turned off, which cuts down on the mean time to repair (MTTR) during unexpected outages.

Lifecycle Cost and Supplier Evaluation

Total cost of ownership includes starting financial costs, installation costs, operational energy losses, upkeep labour, and finally the costs of shutting down the system. Even though luxury makers charge more, better quality parts and longer service intervals often make the overall cost of ownership less expensive than cheaper options that break down more often.

Assessing a supplier's skills goes beyond checking that they can meet product requirements. Engineering, Procurement, and Construction (EPC) companies look for makers that can provide detailed technical documentation, quick engineering help during the planning process, and the ability to do factory acceptance testing. Warranty terms, the availability of extra parts, and field service reaction times all have a direct effect on operating stability. Downtime of mission-critical equipment costs a lot more than the initial savings from buying it.

Comparing Leading Armored Metal-Enclosed Switchgear Brands and Performance

Global producers bring unique strengths to the market for Armored Metal-Enclosed Switchgear, combining new ideas, dependability, and the ability to provide support in different regions. Knowing these things makes it easier for buying teams to choose vendors that fit the needs of the project and the company.

ABB is the leader in digital integration, and their switchgear has sensors built in for status tracking and predictive maintenance. Their arc-guard technology can find faults at the millisecond level and take defensive steps faster than regular relays. Siemens focuses on flexible scalability, which lets capacity grow in the future by using standard busbar connections and plug-in circuit breaker designs. During the engineering stages, their SIMARIS software suite makes it easier to coordinate system design and security.

Eaton is going after the North American market with designs that are compliant with ANSI and work best for utility distribution uses. Their Cooper Power line has vacuum interrupters that can handle 30,000 mechanical processes, which means they don't need as much long-term maintenance. Schneider Electric cares about the environment and makes switches with insulation alternatives that don't use SF6. These insulation alternatives don't release greenhouse gases and leave small footprints.

Asian companies like Mitsubishi and Hitachi make products that are both cheap and have been shown to work well in tropical areas with a lot of humidity. Their designs include coats that don't rust and better closing systems that can handle the harsh conditions that are common in Southeast Asian industrial zones.

Xi'an Xikai is a great example of Chinese engineering excellence in middle and high-voltage tools. They have strict quality control and reasonable prices. Xi'an Xikai has been making things for more than 25 years and has 18 patents in the field of switchgear technology. The equipment they make meets both IEC international standards and GB Chinese national standards. Its plateau-rated equipment works reliably at elevations of up to 4000 meters, which helps with deployment problems in mountainous areas where foreign names need expensive customisation. Each piece of switchgear that is made in a factory with an ISO 9001 or ISO 14001 quality system goes through more than 50 checks to make sure it works properly. These checks include measuring the power-frequency resist voltage, the partial discharge, and the mechanical endurance cycle.

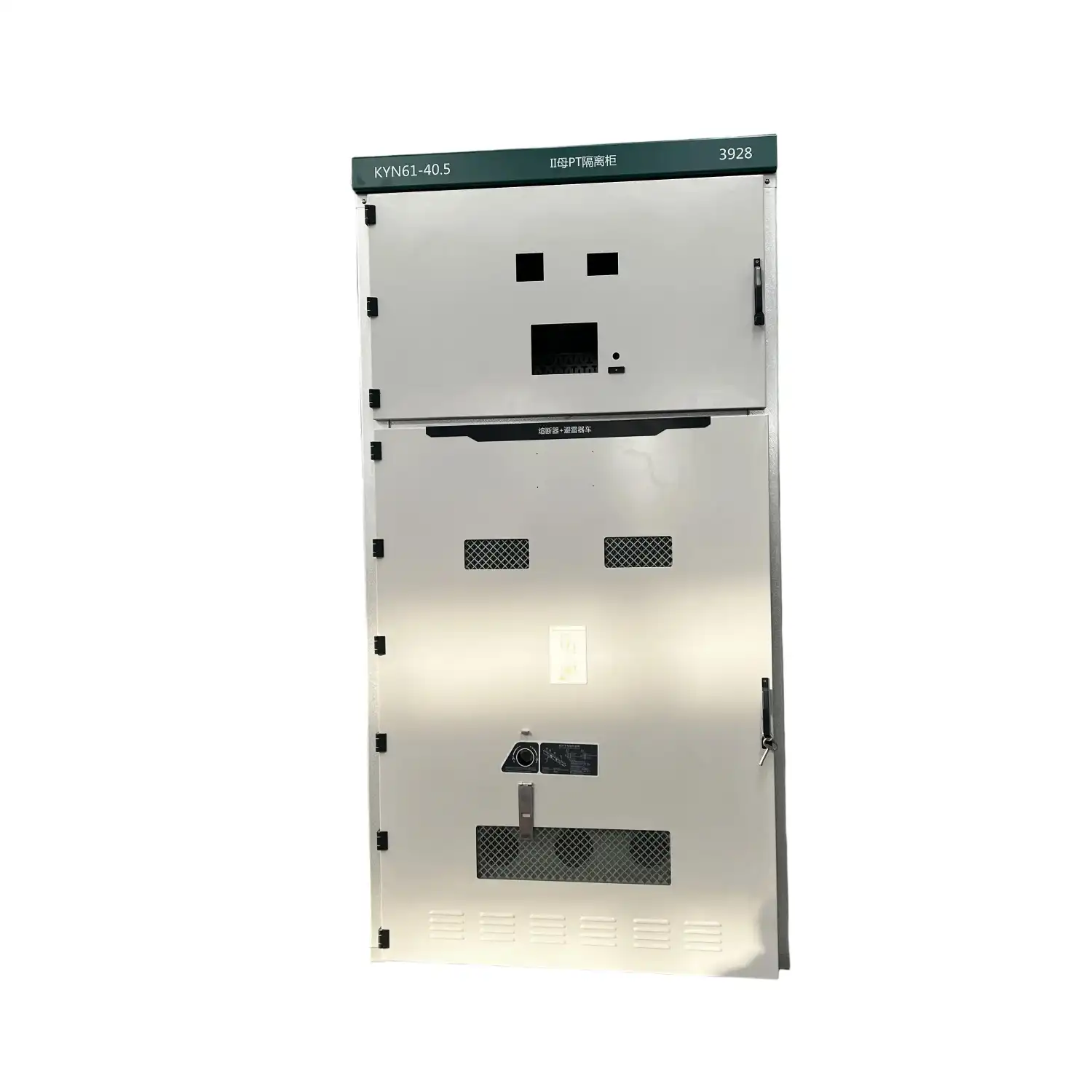

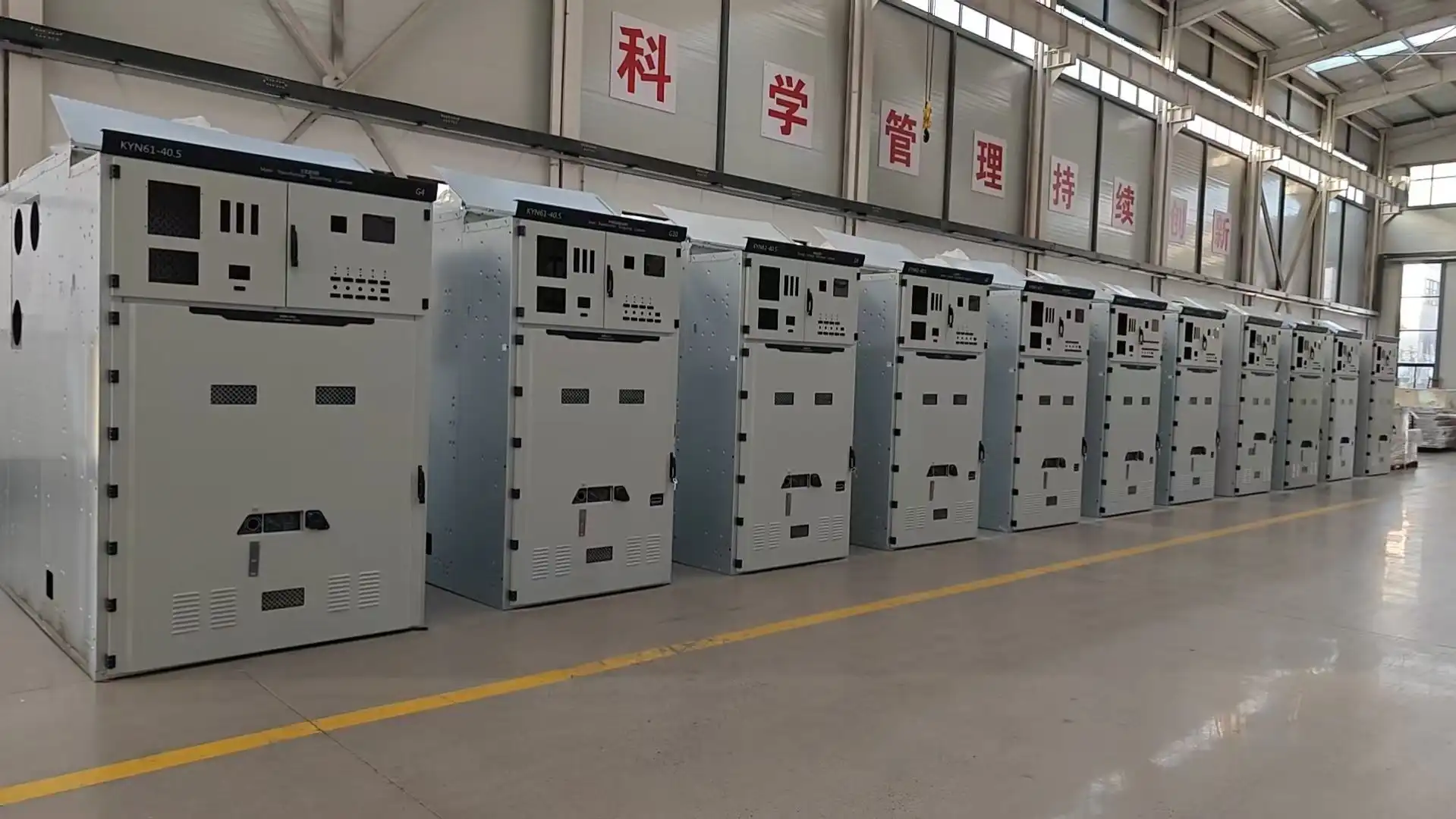

The KYN61-40.5 shows how technically skilled Xi'an Xikai is in the 40.5 kV equipment class. It has a removable cart design with vacuum circuit breakers built into separate metal sections. This makes repair safe while bays next to it are still working. Mechanical, electrical, and software interlock systems stop wrong operation patterns that could put people in danger or damage equipment. The IP4X rating means that it is resistant to dust and water, making it ideal for use in industrial settings. The arc-resistant design meets the standards of IEC 62271-200 for internal arc classification.

Smart grid support is becoming a more important factor in the decision process. IEC 61850 communication methods can be used with modern switchgear platforms to connect them to substation control systems and energy management platforms. IoT-enabled sensors send real-time data to repair management tools about busbar temperature, contact wear, and insulation degradation. These features allow condition-based repair plans that improve the length of inspections and cut down on service activities that aren't needed.

Maintenance Strategies and Lifecycle Management for Optimal Performance

Proactive repair programs make switches more reliable while lowering its costs over its entire life. Manufacturers of equipment usually suggest eye checks once a year and full checks every three to five years. However, depending on the conditions and job cycles, more frequent checks may be needed.

Routine Inspection Protocols

The main goal of yearly checks of Armored Metal-Enclosed Switchgear is to find early signs of wear and tear before they get worse and cause service-impacting problems. Technicians use megohmmeter testing at voltages that are right for the equipment to make sure the control circuit works, make sure the extra contacts are lined up correctly, and measure the insulation resistance. Thermal imaging scans find hot spots that are caused by loose connections or overloaded components. Temperature differences of more than 20°C between phases suggest possible problems that need to be fixed.

Care should be taken with mechanical parts. Breaker operating mechanisms need to be oiled according to the manufacturer's instructions. The trolley guide rails and withdrawal/insertion mechanisms need extra attention. Motors that use stored energy to charge springs should work easily, without making strange noises or drawing too much current. Interlock systems need to be checked to make sure they stop dangerous chains of operations correctly.

Comprehensive Maintenance Cycles

More invasive treatments are used for detailed repair tasks that happen every three to five years. Technicians take out circuit breakers to check the contacts. They measure the depth of the erosion and compare the results to the manufacturer's new standards. Contact resistance testing with micro-ohmmeters shows when something is breaking down. Values higher than 40 microhms usually mean that the item needs to be reconditioned or replaced.

To keep low-resistance paths, busbar joints and links need to be checked for torque. Over time, temperature cycling and mechanical vibration make bolted connections looser. This raises the resistance and creates heat that speeds up the breakdown even more. Retorquing links to certain values stops damage from getting worse over time.

High-potential (hipot) testing is used in primary insulation testing to make sure the dielectric stability. IEC guidelines say that test voltages for 40.5 kV equipment can hit 50 kV, which puts a lot of stress on insulation systems to find problems before they happen. Partially discharge testing is more sensitive and can find insulating gaps and surface tracking before they weaken the dielectric.

Lifecycle Cost Optimization

Lifecycle cost optimization evaluates total ownership cost over a 25–30 year switchgear lifespan, including purchase, installation, maintenance, replacement, and disposal. Energy losses from busbar resistance make efficient designs more economical long-term despite higher upfront cost. Maintenance costs are reduced through accessible, modular, removable breaker designs enabling off-site servicing. Spare parts availability and backward compatibility reduce obsolescence risks and avoid costly premature replacement.

Procurement Best Practices: Strategic Sourcing for Armored Metal-Enclosed Switchgear

To get effective tools at a price that is competitive, good procurement strikes a balance between technical needs, budget limits, and the supplier's abilities. Structured review methods help businesses make smart choices while lowering the risks of projects.

Supplier Qualification and Selection

Qualified suppliers demonstrate strong manufacturing capability, quality systems, and financial stability to ensure long-term reliability. Factory audits verify production processes, testing methods, and capacity compliance. ISO 9001 and ISO 14001 indicate process control and environmental responsibility, while third-party certifications (CESI, KEMA, CSA) confirm international standards compliance. Financial assessments, including credit reviews, help mitigate risks of poor performance or warranty failure.

Technical Evaluation and Quotation Comparison

RFQs should clearly define technical requirements, operating conditions, and performance expectations, supported by diagrams and coordination studies to avoid misinterpretation. Technical evaluation compares proposals based on breaker ratings, busbar materials, control systems, and features, while considering supplier value engineering options. Commercial terms—delivery schedules, payment conditions, warranties, and commissioning support—significantly impact total project cost, timeline, and operational reliability.

Post-Purchase Support and Partnership Development

Support services after the sale for Armored Metal-Enclosed Switchgear are what set excellent providers apart from average ones. Technical help that is quick to respond answers practical questions and troubleshooting problems. Field service experts help with commissioning and respond quickly to major problems. Facility maintenance teams get the information they need through thorough training programs that teach them how to operate and do simple maintenance tasks.

Long-term relationships are better than one-time deals because they last longer. Preferred sellers learn about the company's standards and tastes, which makes future procurement rounds easier. Investments in lower prices or customising may be worth it if you promise to buy a lot of something. Working together allows people to come up with custom ways to solve specific practical problems.

Conclusion

When choosing the right metal-enclosed switchgear, you have to balance technical requirements, safety needs, and the cost of ownership over time. The practical needs must be met by the voltage levels, current capacity, arc-resistance features, and environmental flexibility. Protecting infrastructure investments means judging makers based on quality certifications, expert help, and the ability to provide parts for a long time. Comprehensive repair plans make equipment last longer and reduce unexpected downtime. When you buy something strategically, you should think about the total cost of ownership instead of just the purchase price. This will help you get better results over the life of the tools.

FAQ

1.What distinguishes armored metal-enclosed from metal-clad switchgear configurations?

The terms are often used to refer to the same thing, but there are some small differences. When a circuit breaker is metal-clad, it means that it is mounted on a detachable trolley inside a metal enclosure that meets ANSI or IEC standards for usability and separation of functions. Armored Metal-Enclosed Switchgear includes a wider range of forms, such as breakers that are fixed in place and have metal walls between their working zones. Through their compartmentalisation and arc control features, both are safer than options that aren't armored.

2.How do I determine appropriate current and voltage ratings for my facility?

Do load studies to figure out the highest ongoing current needs and growth margins for the future, which are usually between 20 and 30 percent of the capacity reserve. Ratings for voltages must match the standard voltages of the system, which are usually 12 kV, 24 kV, or 40.5 kV for medium-voltage uses. Short-circuit tests find out how big the fault current is, which affects the scores for breaker interrupting and busbar withstand. Talking to electrical experts before making choices makes sure that the choices can safely handle both normal operations and fault situations that aren't expected.

3.What maintenance intervals maximize equipment reliability while controlling costs?

Visual checks and simple functional testing done once a year catch most new problems before they get too expensive to fix. Every three to five years, full repair checks the insulation and replaces any worn parts. The operating climate and job cycles affect the best frequencies. If you do a lot of moving or work in harsh conditions, you should do more frequent maintenance. Using thermal imaging and online partial discharge detection for condition-based monitoring lets you set the best intervals based on the real state of the equipment instead of picking random times.

Partner with Xi'an Xikai for Reliable Power Distribution Solutions

Xi'an Xikai makes metal-enclosed switchgear systems that have been used successfully in challenging utility and industrial settings. Our KYN61-40.5 and wide range of other products work with voltages from 3.6 kV to 40.5 kV and current needs from 630A to 2500A in the infrastructure, transportation, energy, and industrial industries. We are a well-known company that makes Armored Metal-Enclosed Switchgear. We have a lot of experience working in plateau settings and harsh conditions. We can make custom designs that meet IEC, GB, and regional standards.

Our engineering team can help with technical questions at any point in a project's lifetime, from the initial planning phase to ongoing support and commissioning. Factory acceptance testing makes sure that the equipment works well before it is shipped, and detailed paperwork makes installation and getting approval from regulators easier. Our customer service is available at serina@xaxd-electric.com, amber@xaxd-electric.com, and luna@xaxd-electric.com, so you can be sure that your questions will be answered quickly. Your infrastructure investment is protected by a guarantee that lasts for five years and a promise to respond within 72 hours. You can learn more about how our switchgear solutions improve business stability and economy by going to xaxd-electric.com.

References

1. IEEE Standard C37.20.2-2015, "Metal-Clad Switchgear," Institute of Electrical and Electronics Engineers, New York, 2015.

2. International Electrotechnical Commission, "IEC 62271-200: High-Voltage Switchgear and Controlgear - Part 200: AC Metal-Enclosed Switchgear and Controlgear for Rated Voltages Above 1 kV and Up to and Including 52 kV," Geneva, Switzerland, 2021.

3. National Electrical Manufacturers Association, "NEMA SG 4-2020: Alternating Current High-Voltage Circuit Breakers," Rosslyn, Virginia, 2020.

4. Das, J.C., "Power System Analysis: Short-Circuit Load Flow and Harmonics," Second Edition, CRC Press, Boca Raton, 2018.

5. Grigsby, Leonard L., "Electric Power Generation, Transmission, and Distribution: The Electric Power Engineering Handbook," Third Edition, CRC Press, Boca Raton, 2012.

6. McDonald, John D., "Electric Power Substations Engineering," Third Edition, CRC Press, Boca Raton, 2017.
