How Current Transformers Contribute to Safe Power Distribution?

Current transformers serve as critical safety guardians in modern power distribution networks, transforming potentially dangerous high currents into manageable, measurable signals that protect both equipment and personnel. These electromagnetic devices enable accurate monitoring, precise fault detection, and reliable protective relay operation across industrial facilities, utility grids, and commercial installations. By providing electrical isolation between high-voltage primary circuits and low-voltage secondary monitoring equipment, current transformers establish the foundation for safe, efficient power system operation while ensuring compliance with international safety standards and regulations.

Introduction

Reliable fault detection skills and precise current measurement are critical to power distribution safety. In both commercial and industrial power systems, current transformers are crucial to maintaining operational safety and dependability. Selecting optimal CTs for certain applications strongly effects the system's efficiency, fault detection accuracy, and overall infrastructural safety.

This thorough study analyzes current transformers from basic functioning principles to practical procurement issues. We discuss how these devices assist safety measures, analyze different options available in the modern marketplace, and give practical installation instructions. The material targets the unique demands of global industrial procurement experts aiming to improve their power distribution network while keeping the highest standards of security.

Modern electrical systems confront growing complexity as sites expand and power needs rise. Manufacturing facilities need continuous operation to fulfill schedules for production, while data centers rely on exact quality of power for sensitive computer equipment. Hospitals are unable to finance electrical outages that can affect patient care, and energy providers must assure grid stability for countless users. Strong, dependable current measuring systems that provide constant performance under all operational situations are needed in these difficult settings.

Understanding Current Transformers and Their Working Principles

Primary Function and Electromagnetic Operation

Current transformers scale down high currents towards standardized, quantifiable values suited for metering and protective devices. The electromagnetic working mechanism enables these devices to give precise current measurement without needing direct connection on high-voltage wires. Primary current travels through the transformer's core, creating a proportionate secondary current that sensors can safely handle.

The transformation ratio affects the relationship between main and secondary currents, generally stated as ratios as 1000:5 or 2000:1. This standardization provides uniform integration with relays for protection, meters, and evaluation systems across various manufacturers and applications. The magnetic core focuses the electromagnetic field, enabling efficient energy transmission while preserving electrical isolation between the two main circuits.

Current Transformer Types and Classifications

Industry applications utilize various CT configurations optimized for specific installation requirements and performance characteristics. Here are the primary categories available today:

1. Wound Current Transformers: Feature primary windings wrapped around the magnetic core, offering superior accuracy and stability for demanding measurement applications requiring precise billing or sensitive protection schemes

2. Split-Core Current Transformers: Provide installation flexibility through hinged core construction that opens around existing conductors without requiring system shutdown or conductor disconnection

3. Bar-Type Current Transformers: Integrate primary conductors directly into the transformer assembly, creating compact solutions ideal for switchgear and panel installations where space constraints limit options

4. Window-Type Current Transformers: Allow primary conductors to pass through the transformer window opening, enabling versatile mounting arrangements while maintaining excellent measurement accuracy

These configurations accommodate diverse installation scenarios while delivering the measurement precision required for reliable system protection. Split-core designs particularly benefit retrofit applications where existing installations cannot accommodate service interruptions. Wound types excel in new construction projects where maximum accuracy justifies their installation complexity.

Critical Ratings and Accuracy Classifications

Understanding current transformers ratings promotes maximum performance and long-term dependability in challenging industrial situations. Primary current ability must meet or surpass the highest fault current levels predicted under abnormal system circumstances. Secondary current ratings often standardized at 1A or 5A to enable compatibility with current monitoring systems and protection devices.

Burden rating establishes the highest load impedance that the scanner can drive while keeping required accuracy. Exceeding burden limitations decreases measurement accuracy and may jeopardize protective relay performance during critical fault circumstances. Accuracy classes, defined by standard classification like 0.3, 0.6, or 1.2, imply percentage error limitations under typical operating circumstances. Revenue metering applications necessitate higher accuracy classes, whereas general protection methods may allow greater tolerances.

How Current Transformers Enhance Safety in Power Distribution Systems?

Fault Detection and Protective Relay Coordination

Current transformers enable sophisticated fault detection schemes that protect valuable equipment and prevent dangerous electrical hazards. When fault currents exceed predetermined thresholds, CT secondary signals trigger protective relays that rapidly isolate affected circuit sections. This coordinated response minimizes equipment damage while maintaining system stability in unaffected areas.

Ground fault prevention depends primarily on precise current monitoring to identify insulation failures prior to them progress into deadly arc flash occurrences. By comparing currents entering and exiting protected zones, differential protection systems may quickly reveal internal problems that need to be quickly isolated. Phase overcurrent protection analyzes individual cable currents, providing backup safety when main systems fail to perform.

The speed and trustworthiness of these protection measures depend largely on current transformer operation under fault situations. During high-magnitude fault situations, CTs must remain accurate while supplying enough secondary current to power many protection devices at once. This stringent performance requirement promotes the need for sturdy transformer designs that survive the mechanical and heat stress related to fault current exposure.

Electrical Isolation and Personnel Safety

Current transformers offer crucial electrical separation between high-voltage basic circuits and persons working with additional monitoring devices. This isolation barrier avoids harmful high-voltage exposure during normal servicing, inspection, and calibration procedures. Secondary circuits normally run at acceptable voltage levels that reduce electrocution dangers while facilitating hands-on work with measuring tools.

Without putting themselves in danger from primary voltage risks, maintenance professionals may securely access CT tertiary circuits for circuit testing, meter testing, and system troubleshooting. This functionality becomes important in industrial situations where regular maintenance plans need frequent equipment access. Proper CT installation incorporates secondary circuit anchoring that protects crew safety even during main insulation failures.

Equipment Protection and System Reliability

Accurate current measurement using appropriately designed current transformers enhances equipment longevity by providing accurate overload prevention and thermal control. Motors, generators, and other costly electrical gadgets benefit from safety methods that avoid dangerous overcurrent events while permitting optimal usage of equipment ratings.

Thermal overload prevention monitors equipment temperature increase by current monitoring, avoiding insulation deterioration that leads to a premature breakdown. Predictive maintenance methods that plan equipment repair based on real operating circumstances rather than random time periods are made possible by load monitoring. These data-driven maintenance strategies maximize equipment availability for crucial production operations while lowering unplanned breakdowns.

Current transducer monitoring also assists power quality administration by recognizing harmonic distortion, capacity imbalances, and other problems putting strain on electrical equipment. Manufacturing facilities with delicate electronic loads notably benefit from extensive current monitoring that ensures optimum operating conditions for precise equipment.

Comparing Current Transformer Solutions for Optimized Procurement

Indoor versus Outdoor Applications

The choice of current transformer for the best long-term safety and performance is heavily influenced by environmental factors. Indoor applications appreciate regulated settings that shield them from moisture, extremes of temperature, and contamination. Standard dry-type transformers frequently serve for interior installations where space limits and maintenance access determine design considerations.

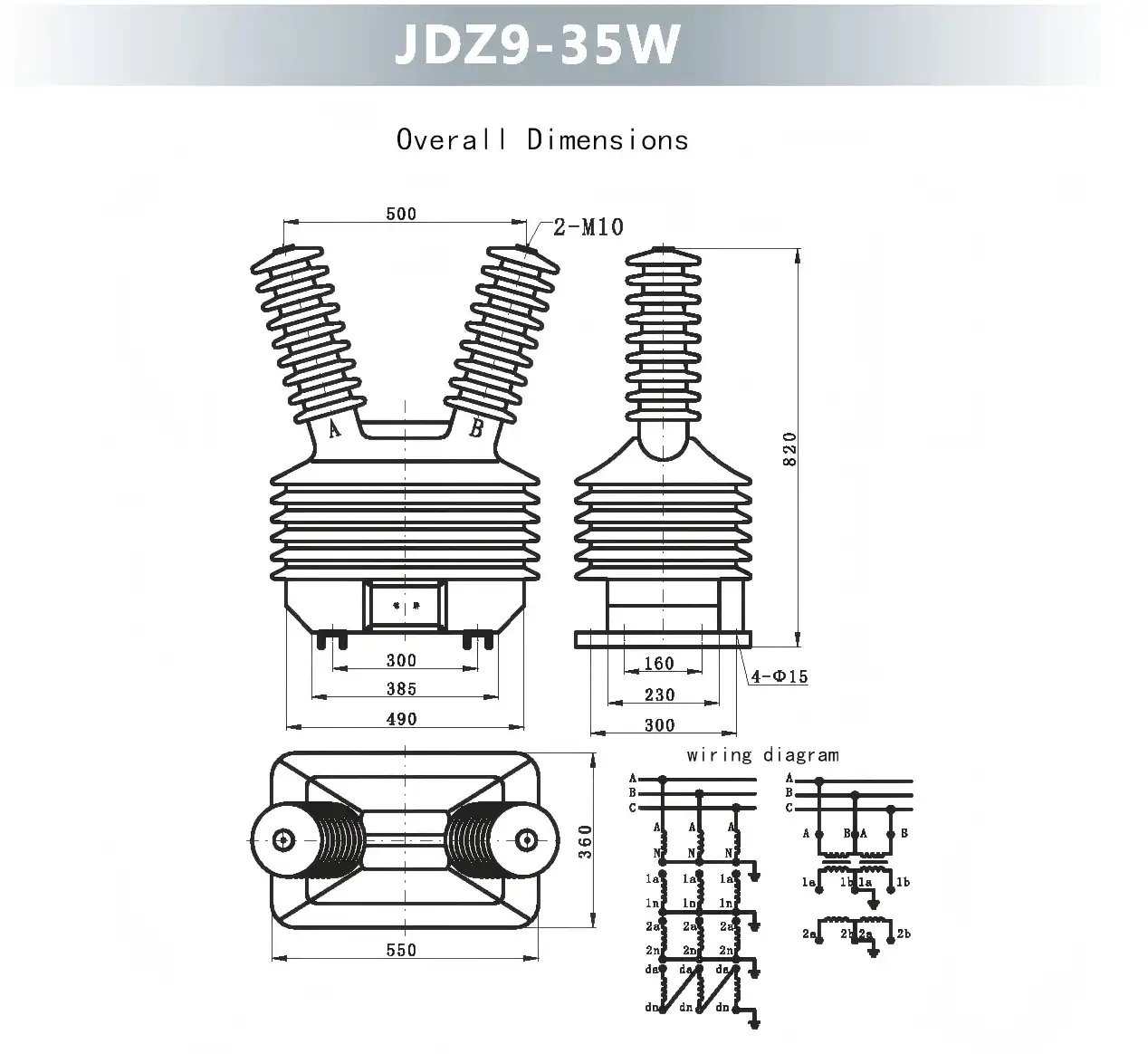

Temperature swings, UV radiation, precipitation, and airborne pollutants are just a few of the severe environmental conditions that outdoor voltage converters must endure. These challenging settings need strong insulating systems, corrosion-resistant substance, and hermetic construction that resists moisture penetration. Porcelain or polymers housings protect interior components and give the mechanical robustness required for utility installations.

Coastal installations confront extra hurdles from salt spray and excessive humidity that promote corrosion and insulation deterioration. These environmental stressors are addressed by specialized coatings and improved sealing systems, which preserve measurement accuracy throughout a prolonged service life. High-altitude installations need modified insulation coordinating to accommodate for lower air density that impacts flashover characteristics.

Split-Core versus Solid-Core Design Trade-offs

Installation flexibility typically decides the choice between divided-core and solid-core modern transformer designs. Split-core transformers offer retrofit applications when existing cables cannot be detached for CT installation. The hinged core architecture permits installation around electrified wires, minimizing expensive system interruptions while ensuring operational continuity.

However, split-core designs often forfeit some measurement precision compared to the solid- core alternatives owing to air gaps in the electric circuit. Critical protection programs may demand solid-core accuracy, whereas common monitoring applications may tolerate split-core ease. Installation labor expenses must be evaluated against accuracy criteria when picking amongst various design techniques.

Solid-core current transformers give greater precision and long-term stability via optimized magnetic circuitry without air gaps. New building projects may satisfy solid-core installation requirements, taken advantage of their performance advantages. Maintenance concerns favor split-core systems when future conductor replacements or upgrades need CT relocation without system downtime.

Oil-Filled versus Dry-Type Insulation Systems

Insulation system selection effects performance as well and maintenance needs throughout the current generator service life. Oil-filled transformers offer outstanding insulating qualities and thermal control for high-voltage applications. The liquid insulation permits compact designs while delivering arc-quenching qualities that promote safety under fault circumstances.

Dry-type insulation systems remove oil handling difficulties while delivering dependable performance in the majority of uses. Epoxy resin casting offers durable insulation that resists contamination by the environment and moisture absorption. In situations when oil testing and refill would complicate service operations, maintenance requirements prefer dry-type systems.

Dry-type current transformers, which remove the possibility of an oil leak, are becoming more and more preferred by environmental standards. Dry designs, which do not need the ventilation associated with oil-filled equipment, are especially advantageous for indoor installations. Cost concerns frequently favor dry-type products for medium-voltage application where oil insulation gives limited performance benefit.

Leading Manufacturer Comparison and Market Position

The worldwide current transformer market comprises numerous prominent manufacturers with solid track records in demanding uses in industry. Siemens maintains significant market presence via innovative design techniques and wide product portfolios that satisfy different application needs. Their manufacturing skills offer both conventional and bespoke solutions for complicated power distribution projects.

ABB harnesses vast utility knowledge to produce current transformers geared for power distribution and transmission applications. They are well-positioned to meet changing market needs because of their emphasis on upgrading the grid and smart grid interoperability. Schneider Electric stresses interaction with larger power management systems, enabling smooth interoperability with their safe relay and observation equipment lines.

General Electric contributes decades of power system knowledge to modern transformer design and manufacture. Their broad installed base gives significant field information about performance that supports constant product development. Each manufacturer provides various benefits based on particular application requirements, current equipment functionality, and long-term maintenance needs.

Practical Guidance for Testing, Installation, and Integration

Installation Best Practices and Safety Procedures

Proper current transformer installation ensures accurate measurement, reliable protection, and long-term safety throughout the device service life. Installation procedures must address both primary and secondary circuit connections while maintaining appropriate clearances and grounding requirements. Primary connections require careful attention to conductor support and thermal expansion accommodation.

Secondary wiring procedures greatly effect measurement reliability and security. While preserving correct polarity connections, twisted pair architecture reduces electromagnetic interference. Secondary circuit grounding offers people safety and baseline potential for linked equipment. Never run voltage transformers with open primary circuits, since this configuration causes unsafe high voltages and probable equipment damage.

In addition to offering sufficient access for maintenance tasks, mounting systems must take into account the mechanical strains caused by short-circuit forces. Seismic concerns apply to structures in earthquake-prone zones where extra bracing may be necessary. In addition to assuring safe work practices near electrical equipment, accurate labeling and documentation ease future maintenance.

Testing Protocols and Performance Verification

Thorough testing confirms adherence to predetermined accuracy standards and validates current transformer performance. Ratio testing establishes the link between main and secondary currents over the operational range. Burden testing guarantees the CT can drive associated loads while keeping accuracy within acceptable limitations.

Insulation testing validates dielectric strength between main and supplemental circuits as well as connecting windings and ground. These are especially critical for outdoor installations because environmental forces may deteriorate insulation over time. Incorrect connections that can jeopardize protective relay performance during fault circumstances are avoided via polarity checking.

Routine test schedule should align with maintenance schedules and regulatory needs. For indoor installations, annual testing may be acceptable, whereas outside equipment would require more frequent inspection. Documentation of test results gives trending data as backs up anticipated repair decisions and helps spot degradation before it influences system function.

System Integration and Load Matching

Equipment features and operational requirements must be carefully assessed for current converter integration. In fault situations, protective relay loads must be accurately anticipated to maintain CT integrity. Meter error may require higher CT precision than safety applications.

All connected devices and wiring resistance must be considered when calculating burden. Wire length and gauge affect burden estimations, whereas voltage drop affects measurement accuracy. Effective burden matching improves system efficiency and prevents CT saturation during maximum faults.

Compatibility testing ensures protection and monitoring systems work properly. Technology may automatically handle interface issues in legacy systems. Before launching the system, commissioning should verify proper operation under normal and simulated fault conditions.

Conclusion

Current transformers represent essential safety components that enable reliable fault detection, accurate measurement, and personnel protection throughout modern power distribution systems. The selection process requires careful consideration of application requirements, environmental conditions, and long-term performance expectations. Proper installation, testing, and integration ensure optimal system performance while maintaining safety standards that protect both equipment and personnel.
